BN 5464 built from P2K U-28B model. BN 5464 is a former Great
Northern locomotive. Handbrake chain detail not applied yet. "BN is Not
Dead Jim". Photos Copyright © Details West
Model photos enclosed are super detailed Atlas and P2K General Electric locomotives. All models were custom painted and decaled. Click on photo to enlarge.

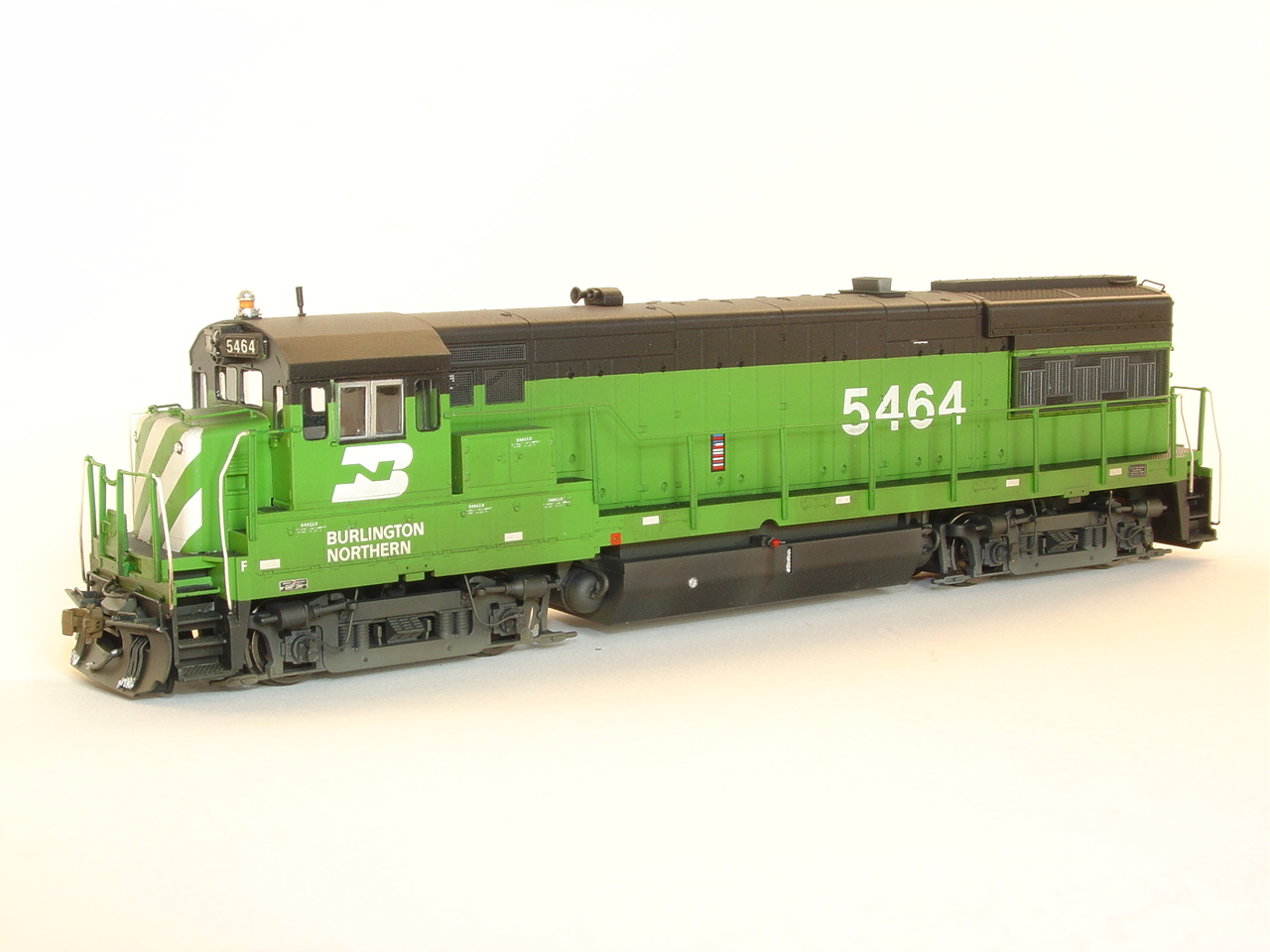

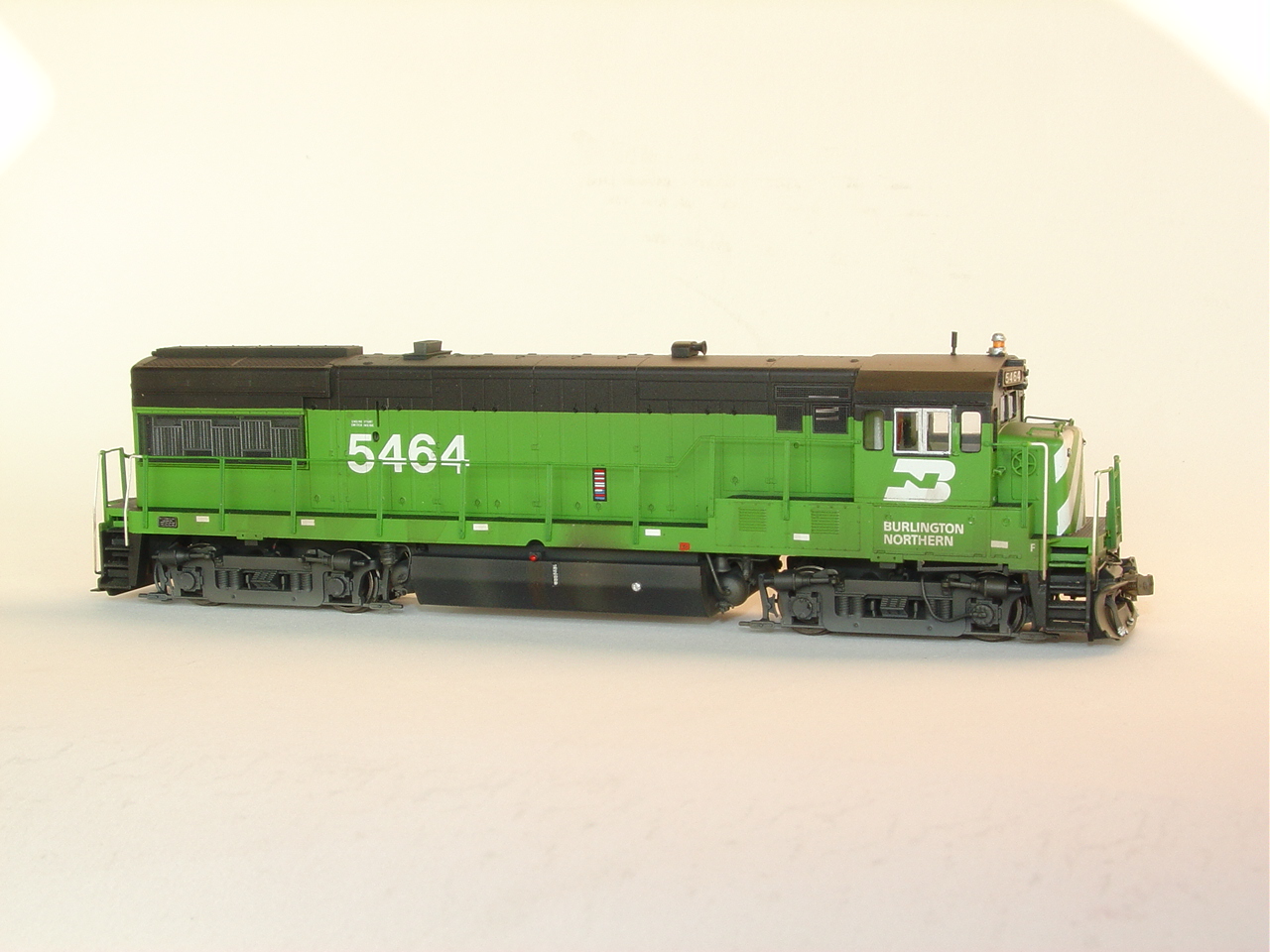

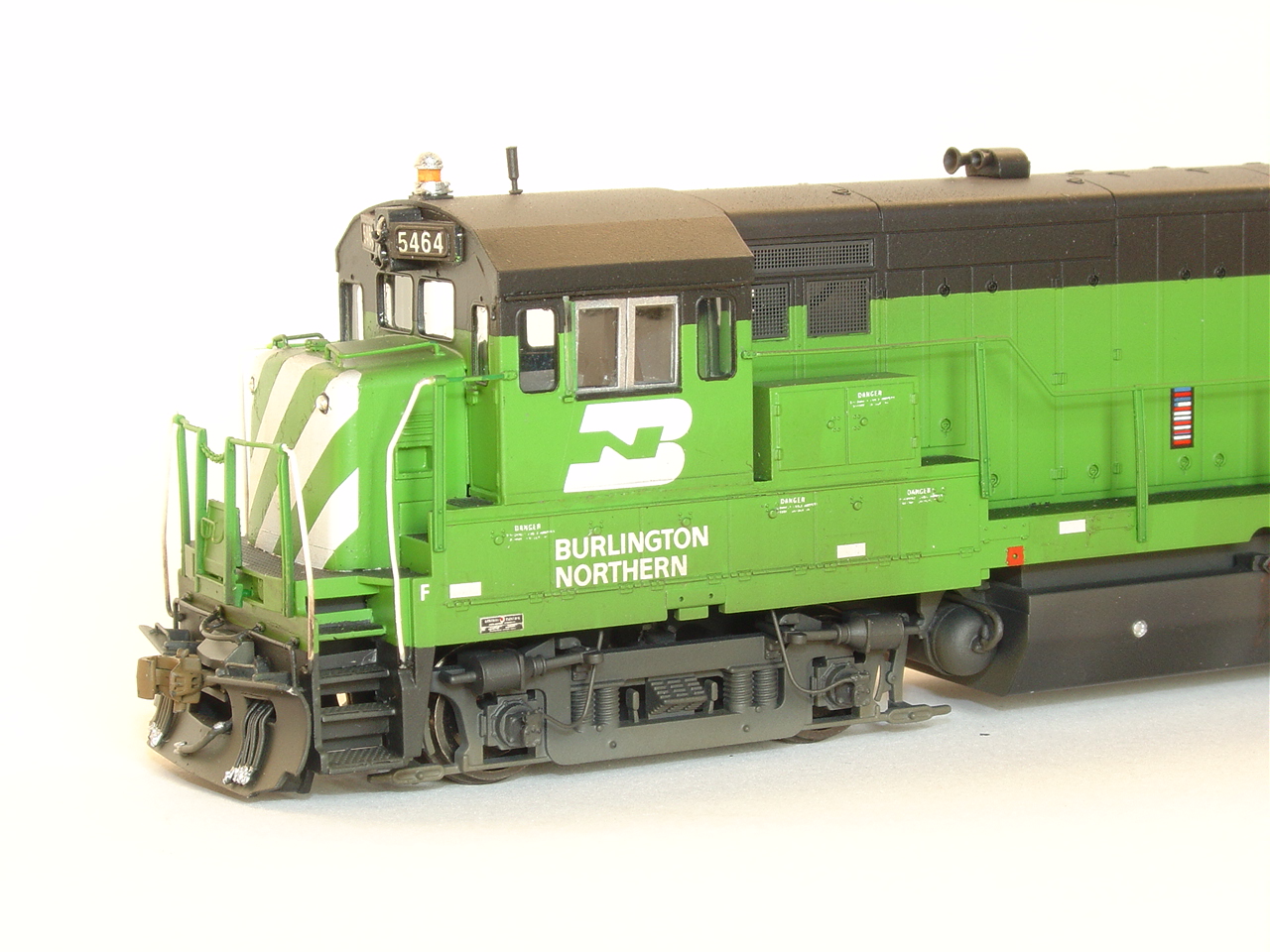

BN 5464 built from P2K U-28B model. BN 5464 is a former Great
Northern locomotive. Handbrake chain detail not applied yet. "BN is Not
Dead Jim".
Model truck bolsters were milled down .040" to represent
the proper height.
Step wells were modified for GN 4 step version from model's
stock 3 step version. A-Line brass steps were used. Model is waiting for a ESU
Loksound DCC GE U- Boat sound coming soon to be installed.
Parts use on BN U-28B model:
PL-342 Snow Plow, Low Profile Type
LN-341 Headlight Lens
AH-347 Air Horn (Shrouded)
RA-157 "Firecracker" Antenna
WS-350 Wheel Slip Modulation Device
MU-265 MU Hoses, 4 Cluster Type
AH-302 Air Line Hose
SR-284 Speed Recorder
RB-306 Pyle National Rotary Beacon
FF-149 GE Fuel Fillers
AT-263 Air Tanks & Details
AF-139 Air Filter Set
BE-127 Underframe Bell
MU-220 MU Cable Detail
Model was painted with Scalecoat II BN green and Scalecoat II Black. Microscale BN loco set decals applied. Additional details added are Hi-Tech GE cab, A-Line GE brass step, MV Class Light Lens and rear headlight lens.
U30C's Super Detailed from Atlas models.

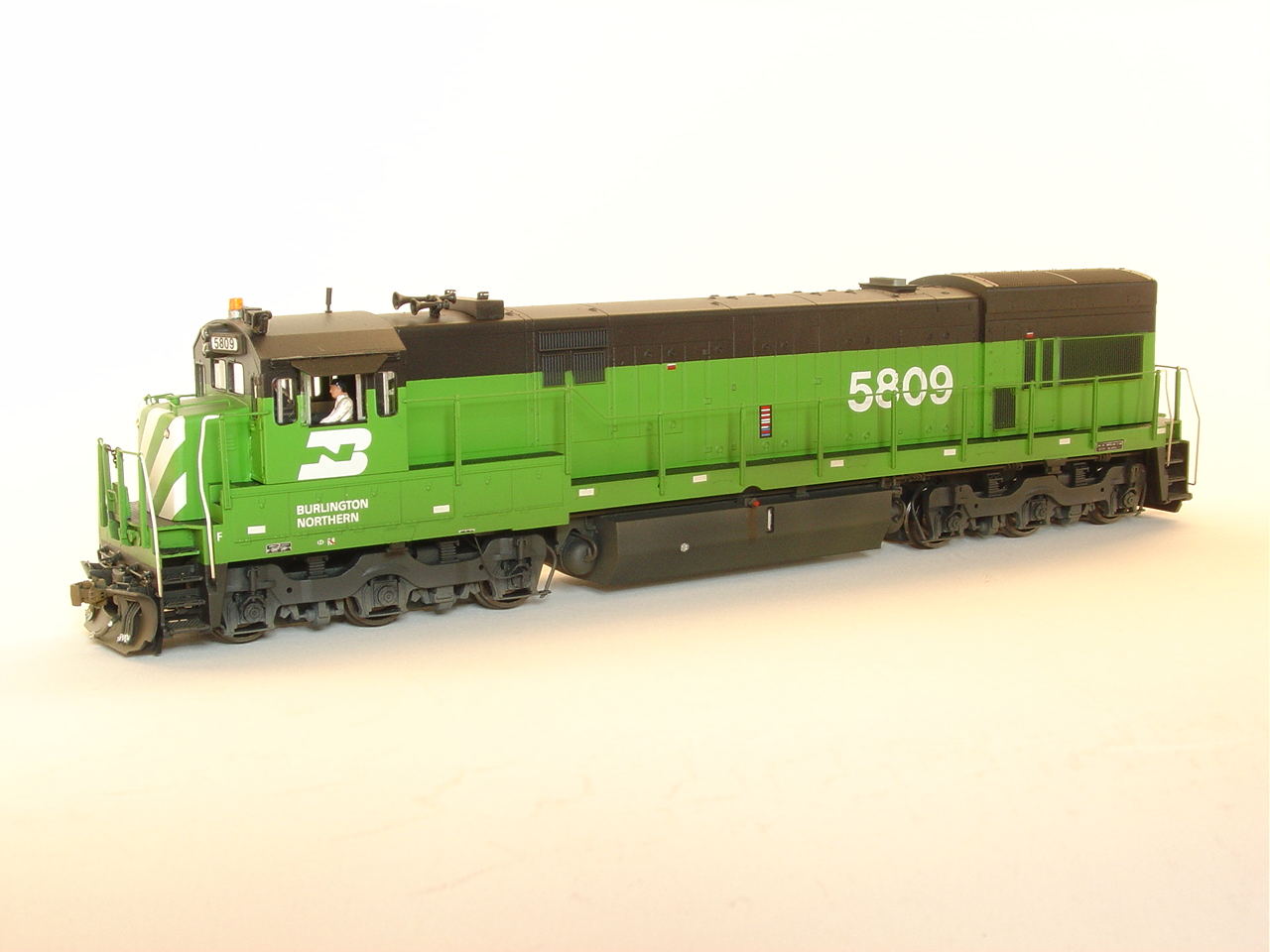

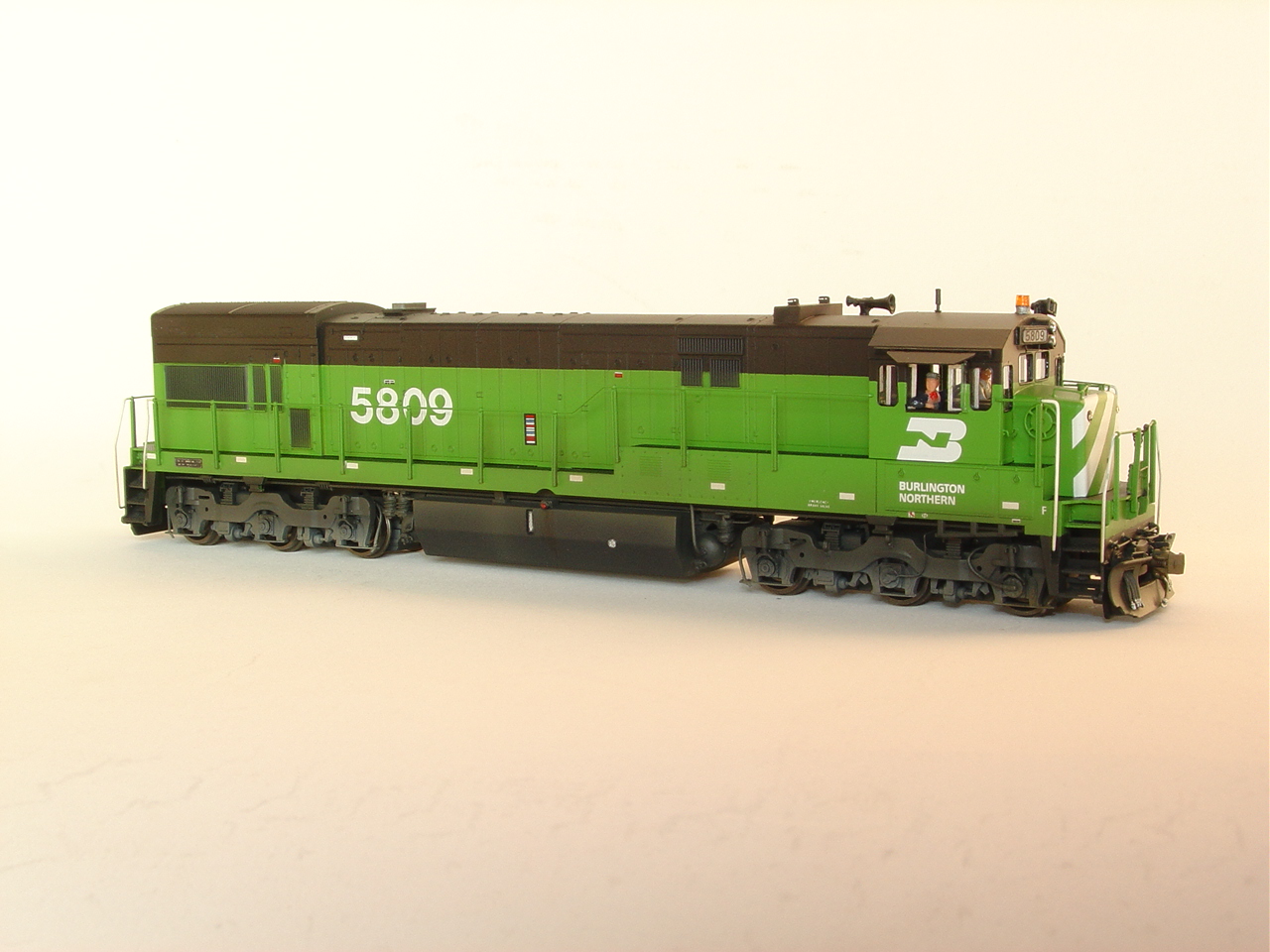

BN 5809 built from an Atlas U30C model. BN 5908 was delivered
with a speaker type bell. Prototype unit was RC equipped. This is a
"Master" unit. Model truck bolsters were milled .030" to represent
proper height. As Bones used to say "BN is Not Dead Jim".
Here we see the RC box behind the cab. The box was fabricated
from sheet styrene. These prototype U boat classes were assigned to coal trains
that use radio control rear helpers.
A-Line brass GE steps applied.

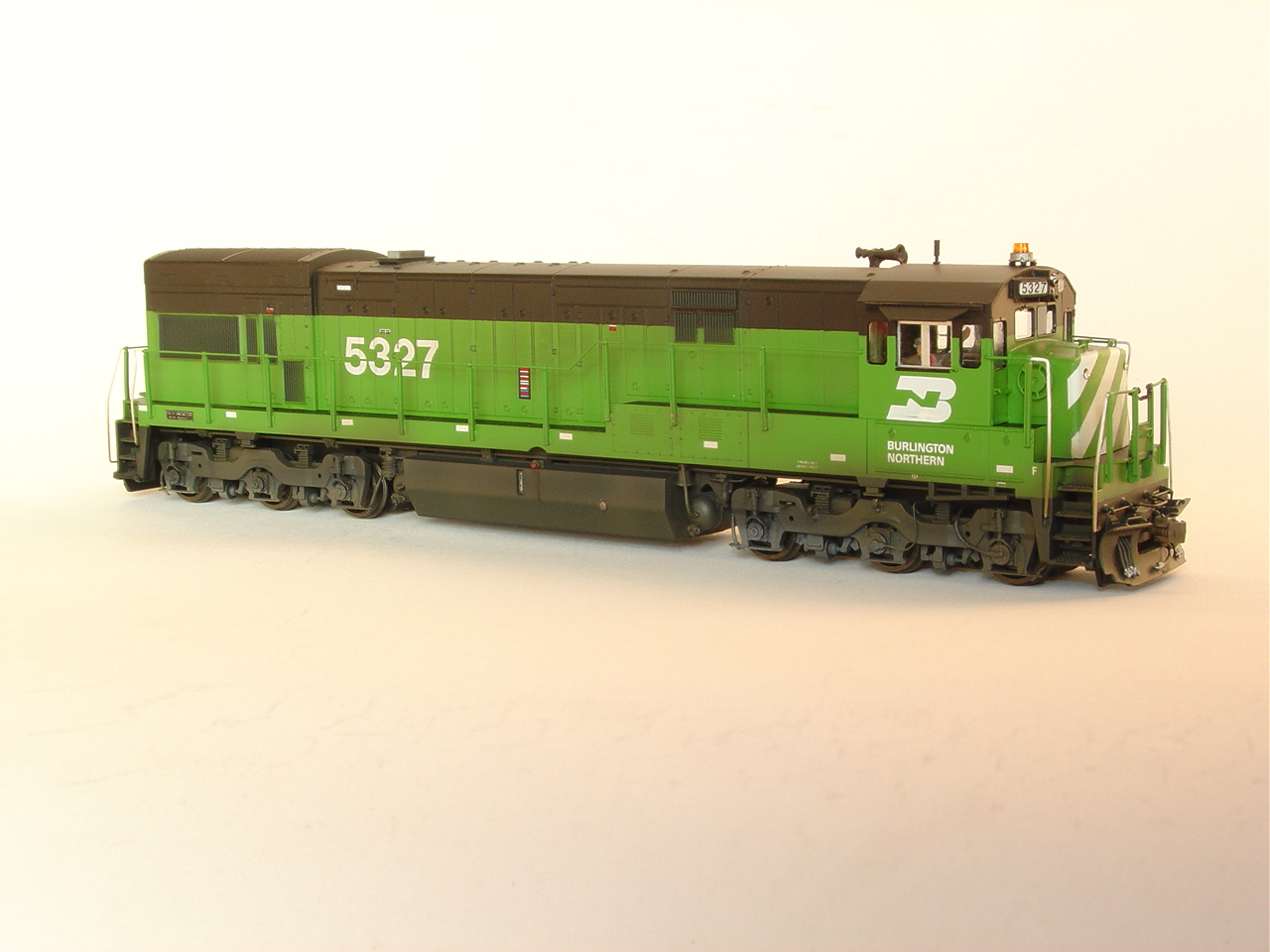

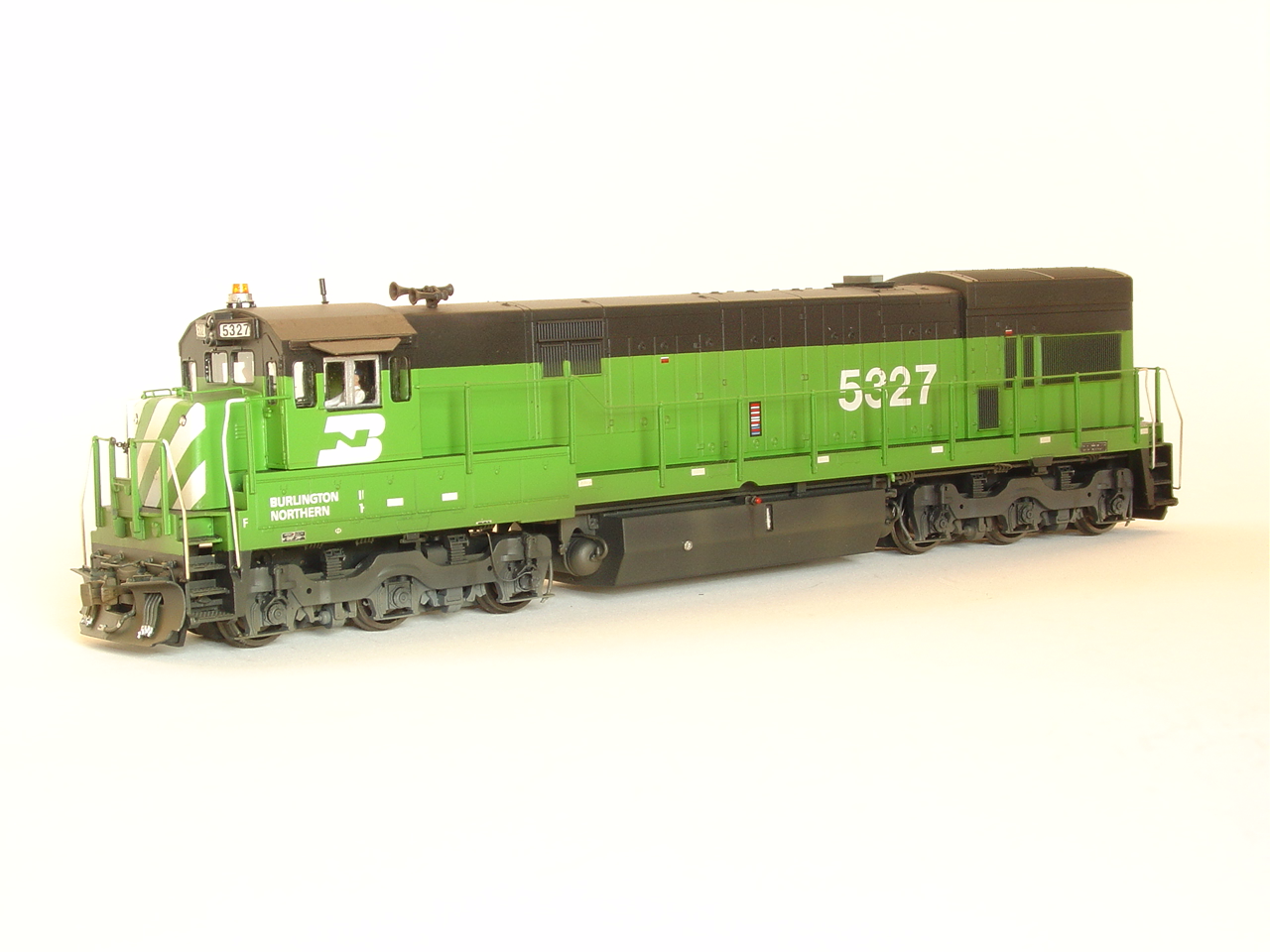

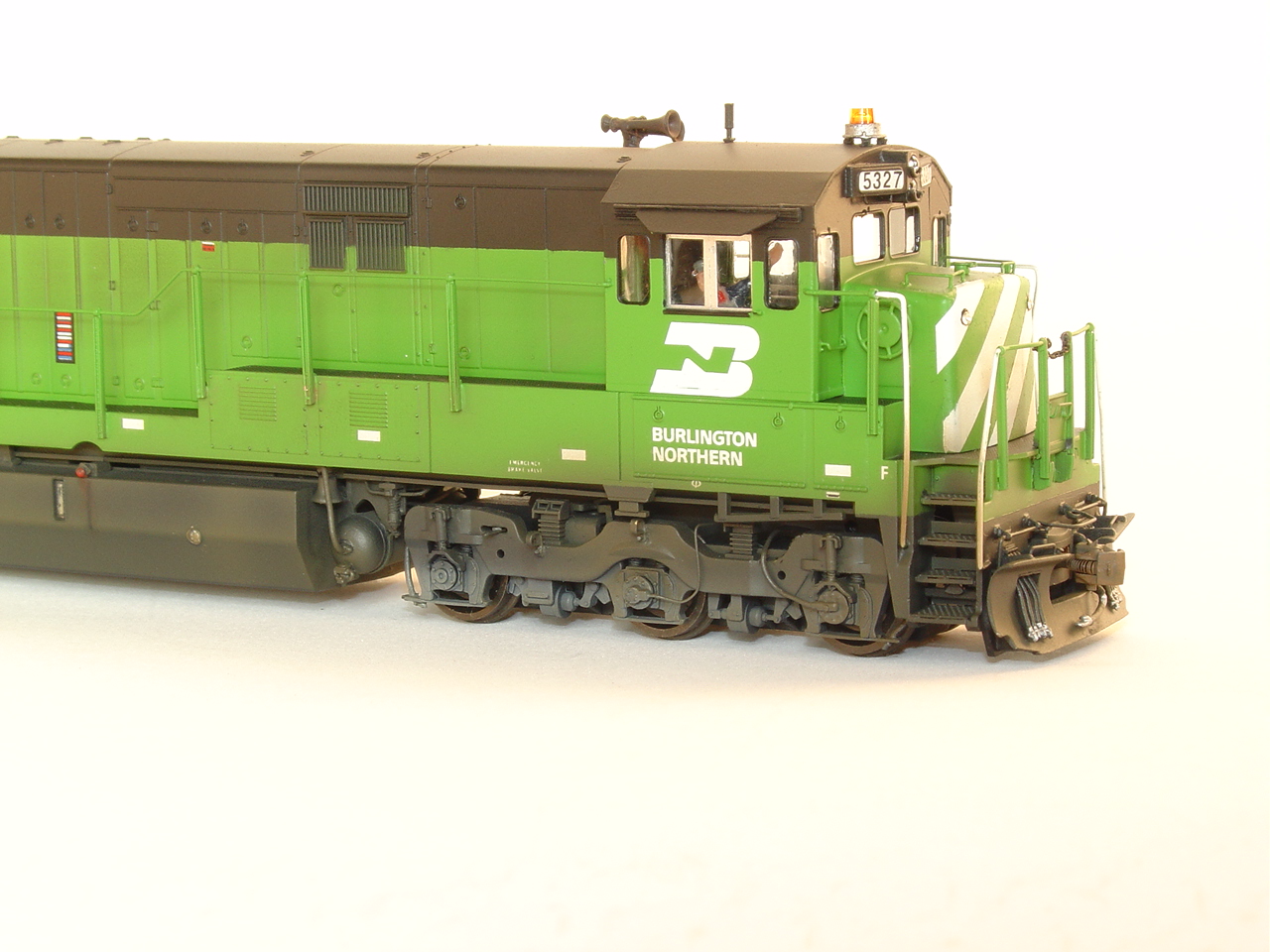

BN U30C 5327 non RC equipped.

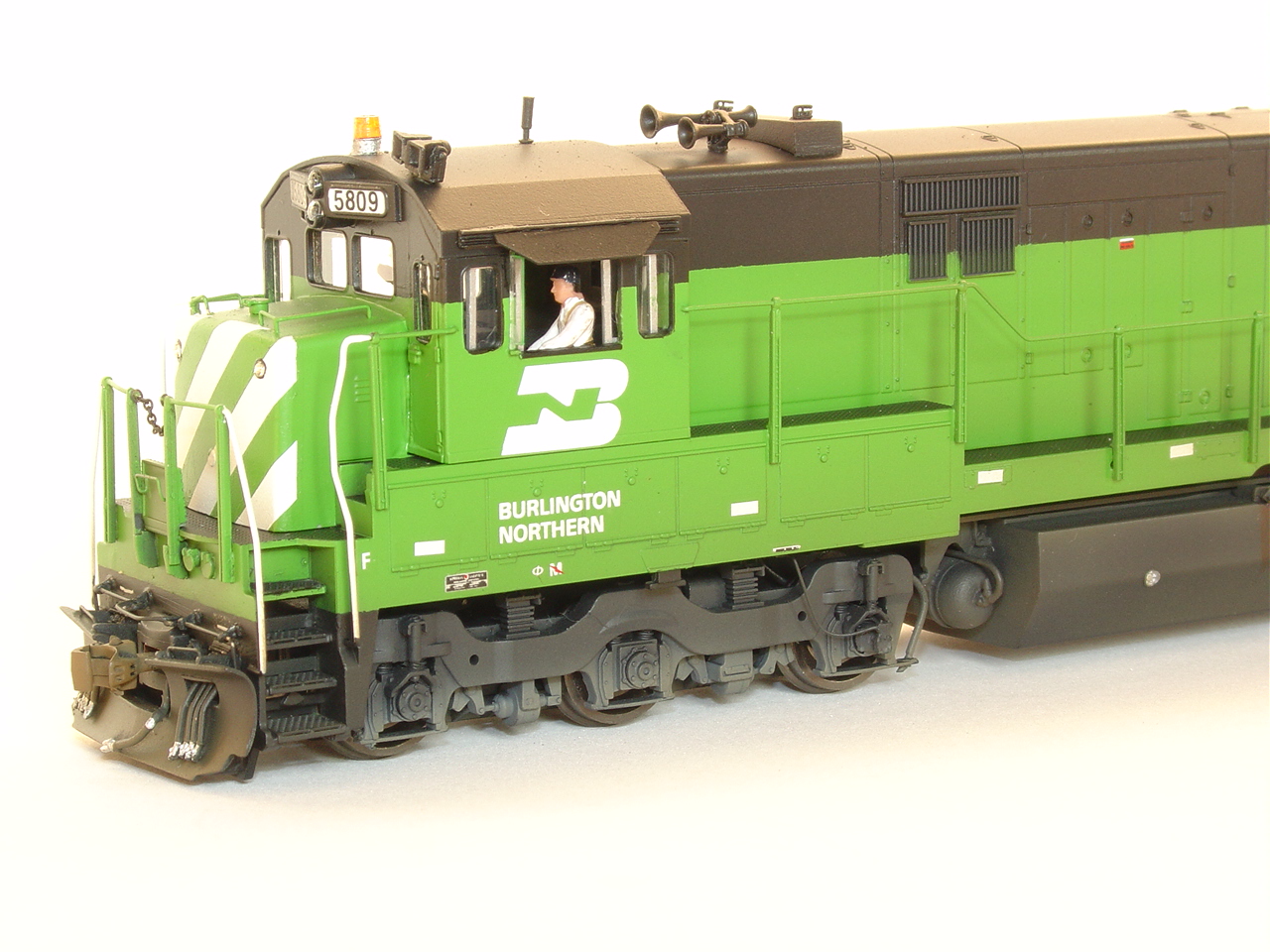

HI-Tech Details GE cab installed. Nice thin wall cab design.

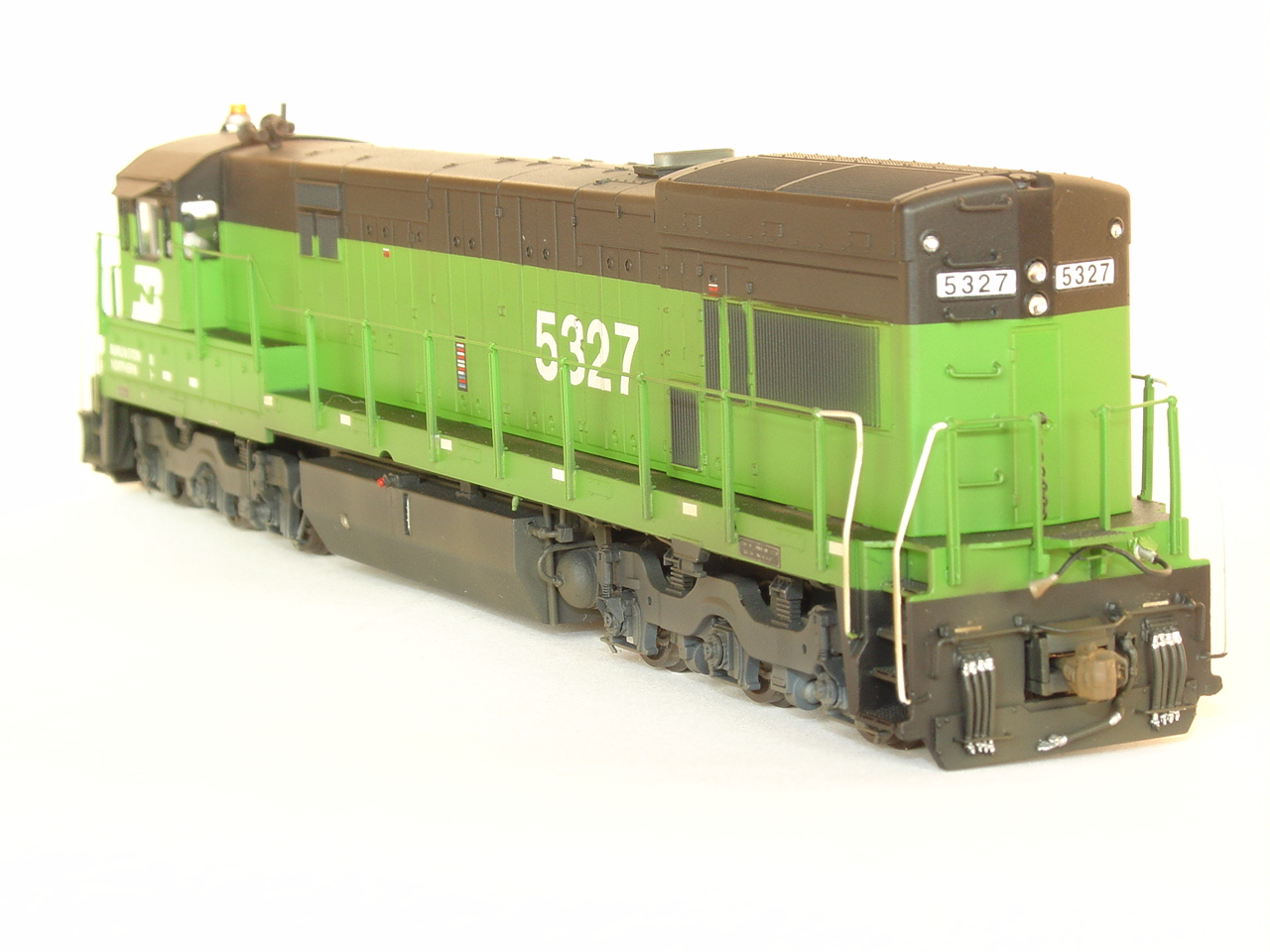

Nice GE U-Boat profile.
Handbrake truck chain detail not yet applied. Model is
waiting for a ESU Loksound DCC GE U- boat sound decoder coming soon to be
installed.
Parts use on BN U30C models:
PL-342 Snow Plow, Low Profile Type
LN-341 Headlight Lens
RB-106 Beacon
RA-157 "Firecracker" Antenna
AH-326 Leslie S3L Horn
AT-263 Air Tanks & Details
MU-265 MU Hoses, 4 Cluster Type
AH-302 Air Line Hose
Af-139 Air Filter Set
FF-149 Fuel Fillers
BE-127 Underframe Bell, BN 5327 only
RA-275 Small Sinclair Antenna
SR-284 Speed Recorder
SR-285 Speed Recorder
EB-337 Electronic Speaker Bell
WS-350 Wheel Slip Modulation Device
Model was painted with Scalecoat II BN green and Scalecoat II Black. Microscale BN loco set decals applied. Additional details added are Hi-Tech GE cab, A-Line GE brass step, MV Class Light Lens and rear headlight lens.
Photos Supplied by Mike Rose, used with permission.

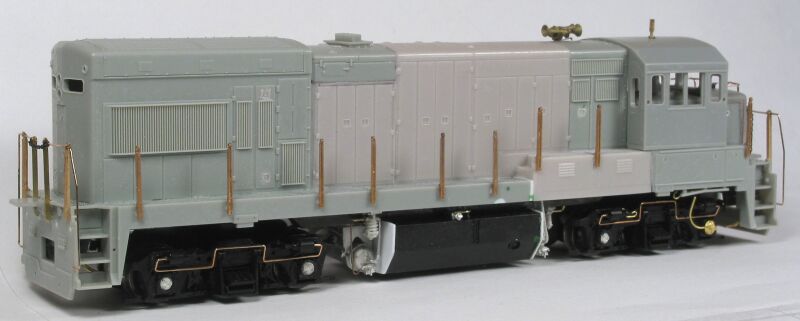

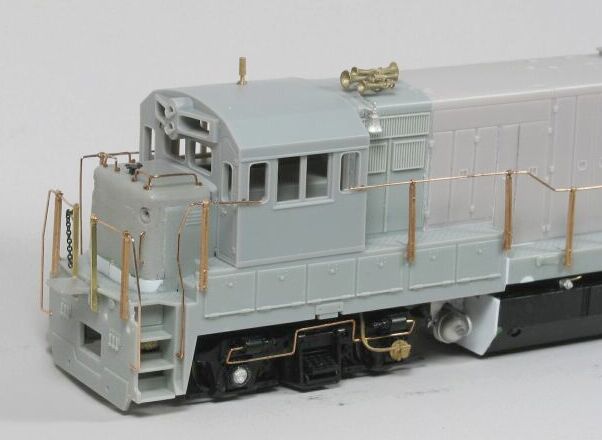

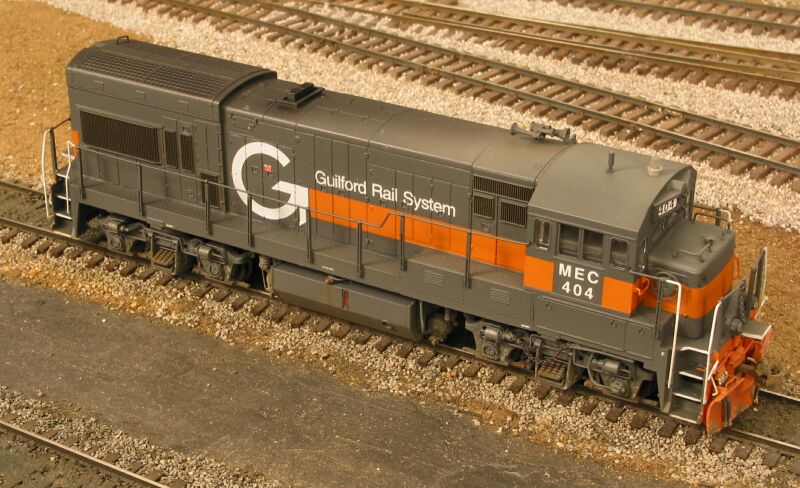

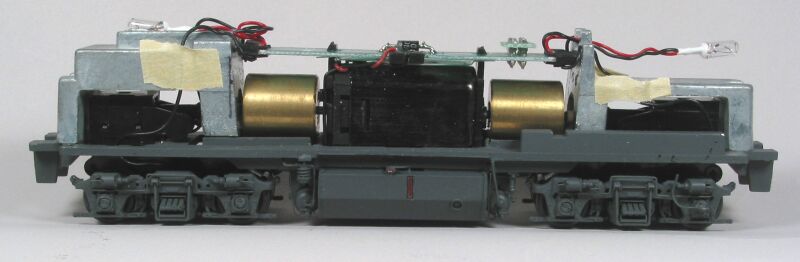

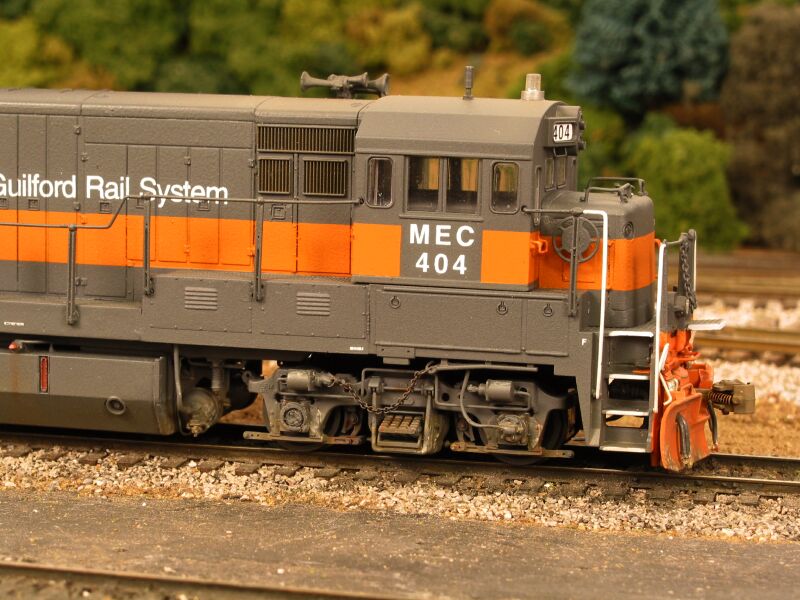

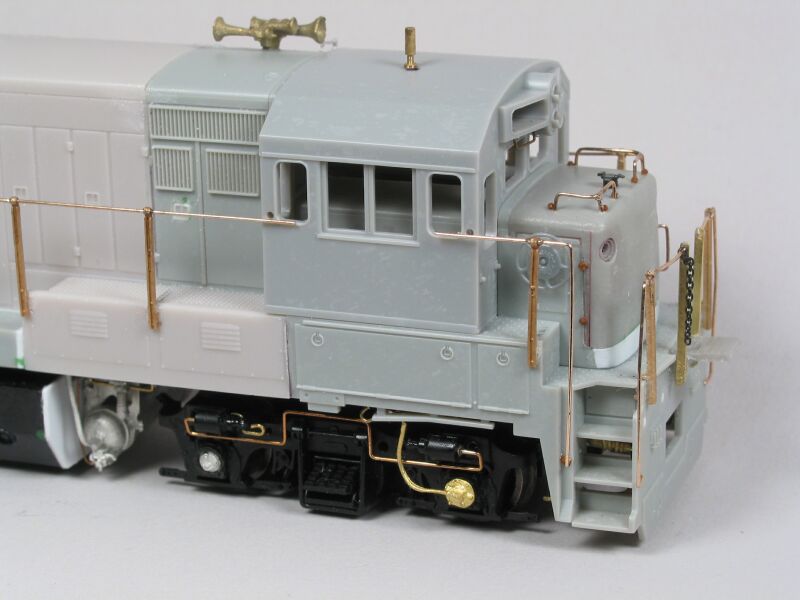

Mike Rose sent these model photos he kitbashed and super detailed a Guilford formally MEC U18B. Model has many Details West parts as well as other details applied. There is a U18B Yahoo group at http://groups.yahoo.com to check out. Check out the models below!
Details West parts used on model:
PL-120 Snow Plow
BE-129 Side Mount Bell
DL-228 Ditch Light, modified
RA-157 Firecracker Antenna
AH-191 Leslie 5 Chime Horn
BC-244 Truck Roller Bearing Cap
AT-263 Air tank detail set
