This page contains model photos with modeling and prototype information for detailing Athearn's AC4400CW's using Details West detail kits and parts.

(Click on Photo to Enlarge)

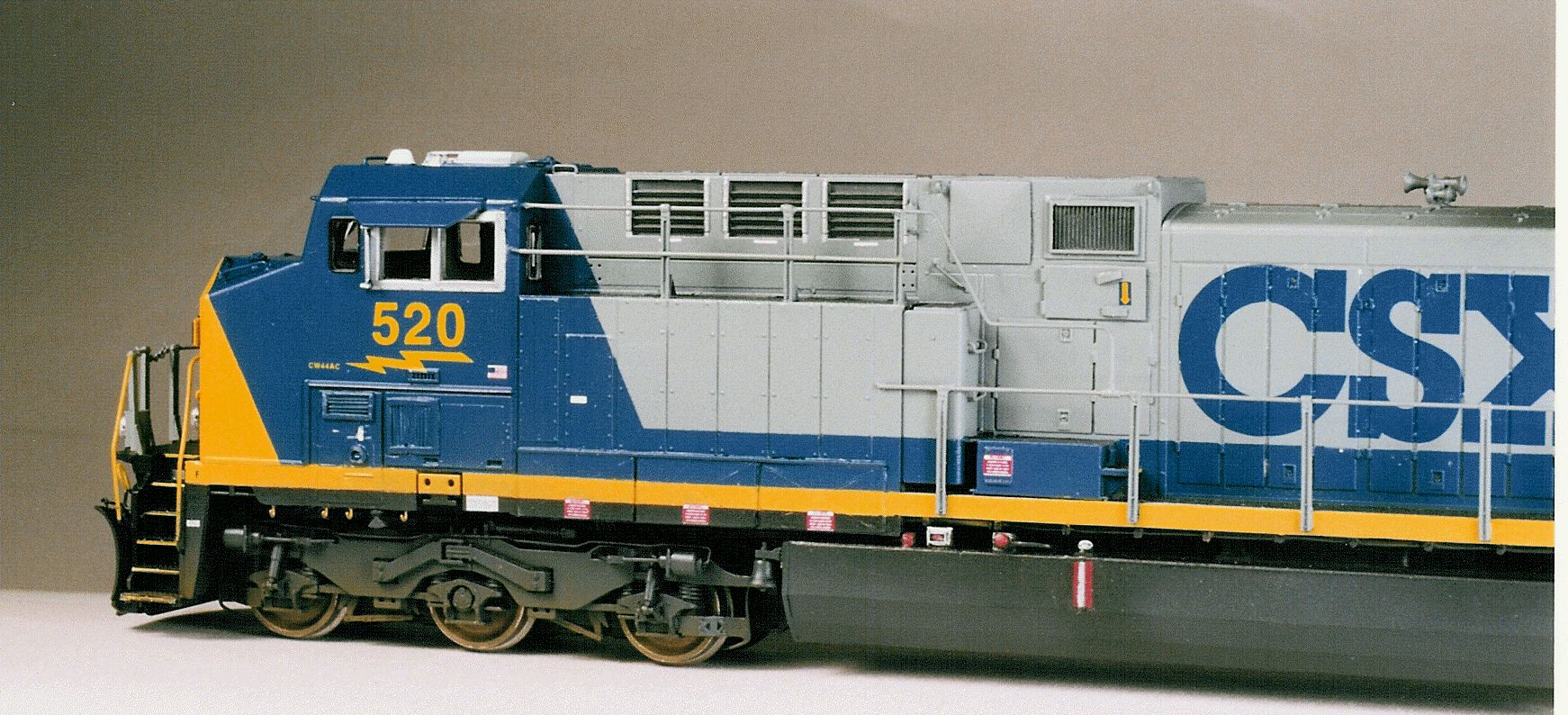

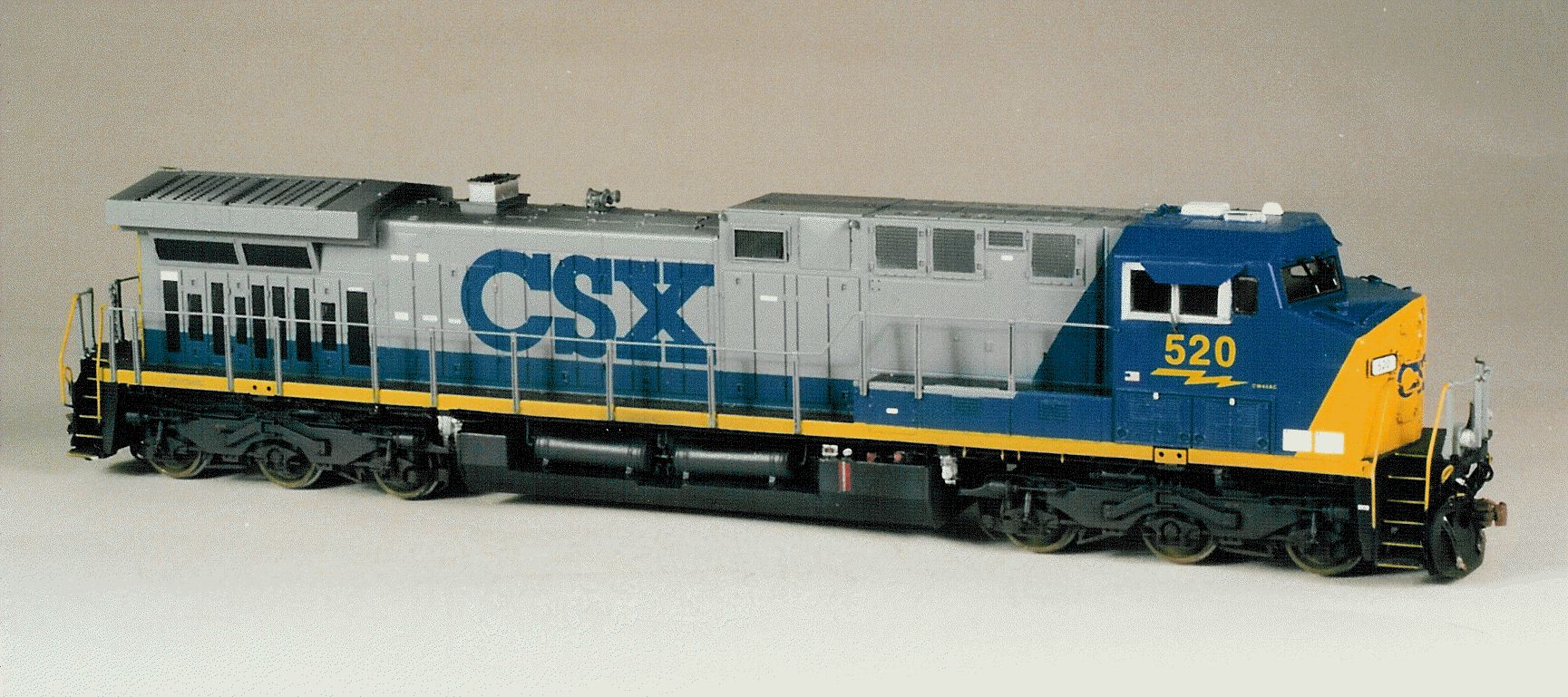

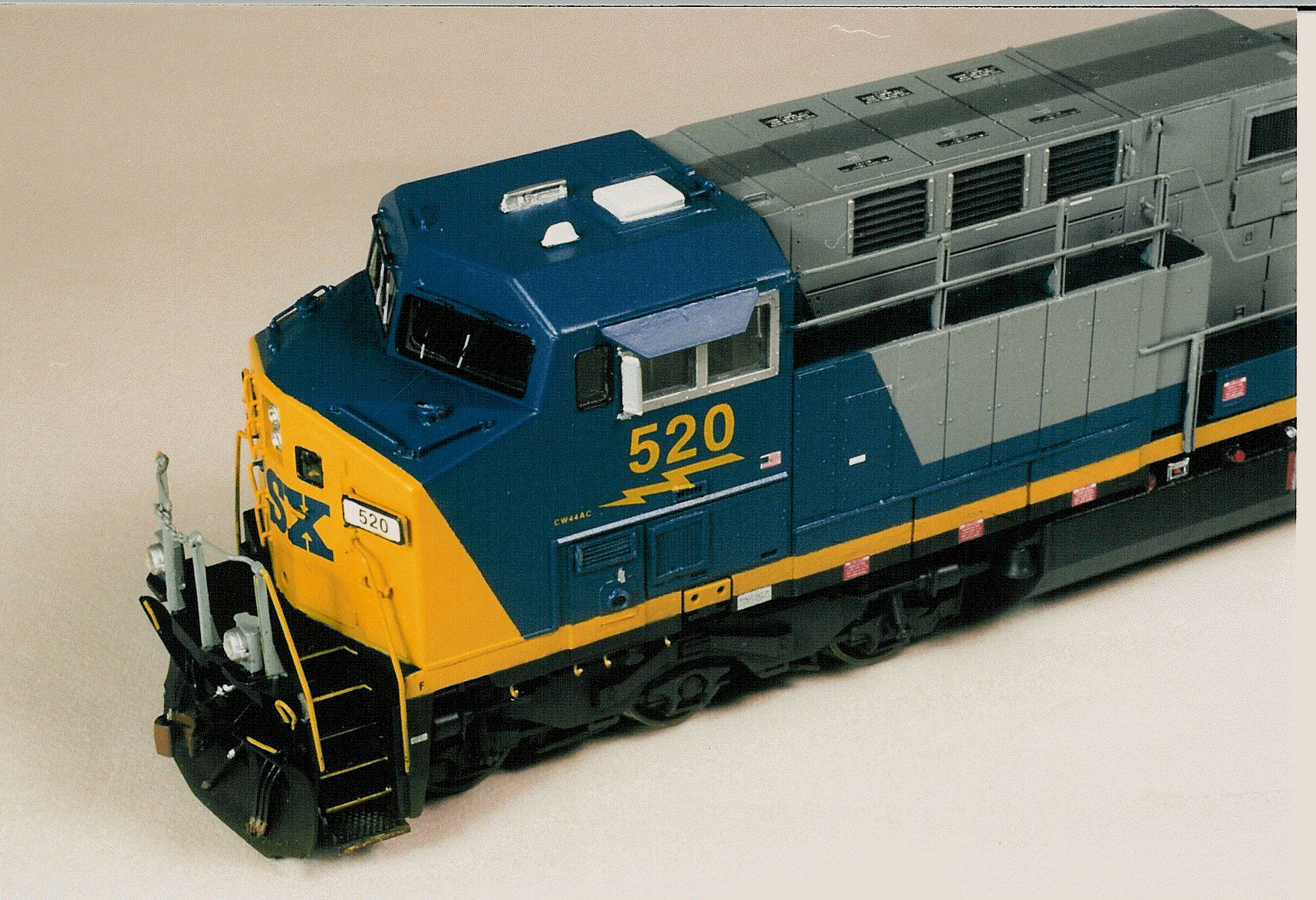

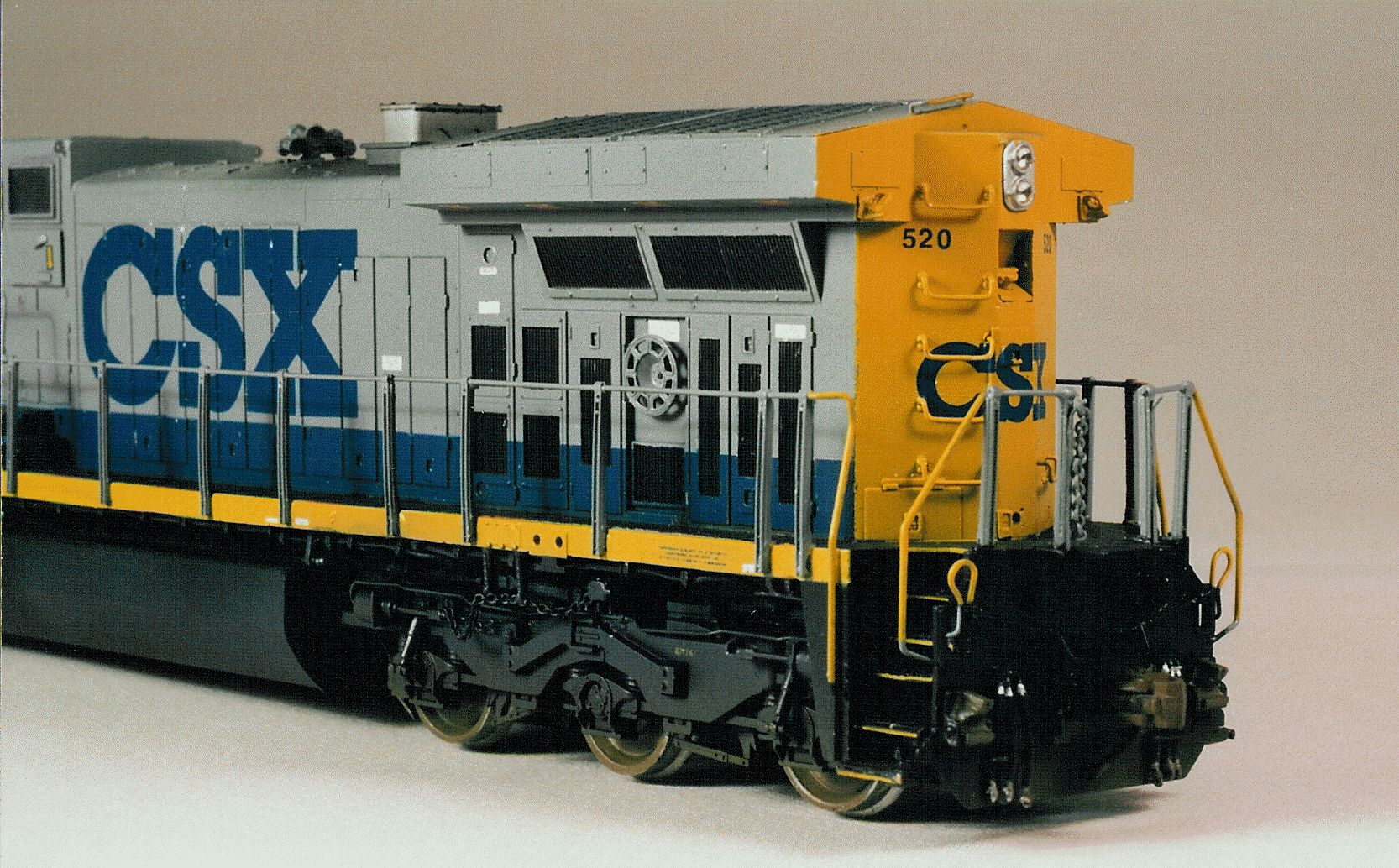

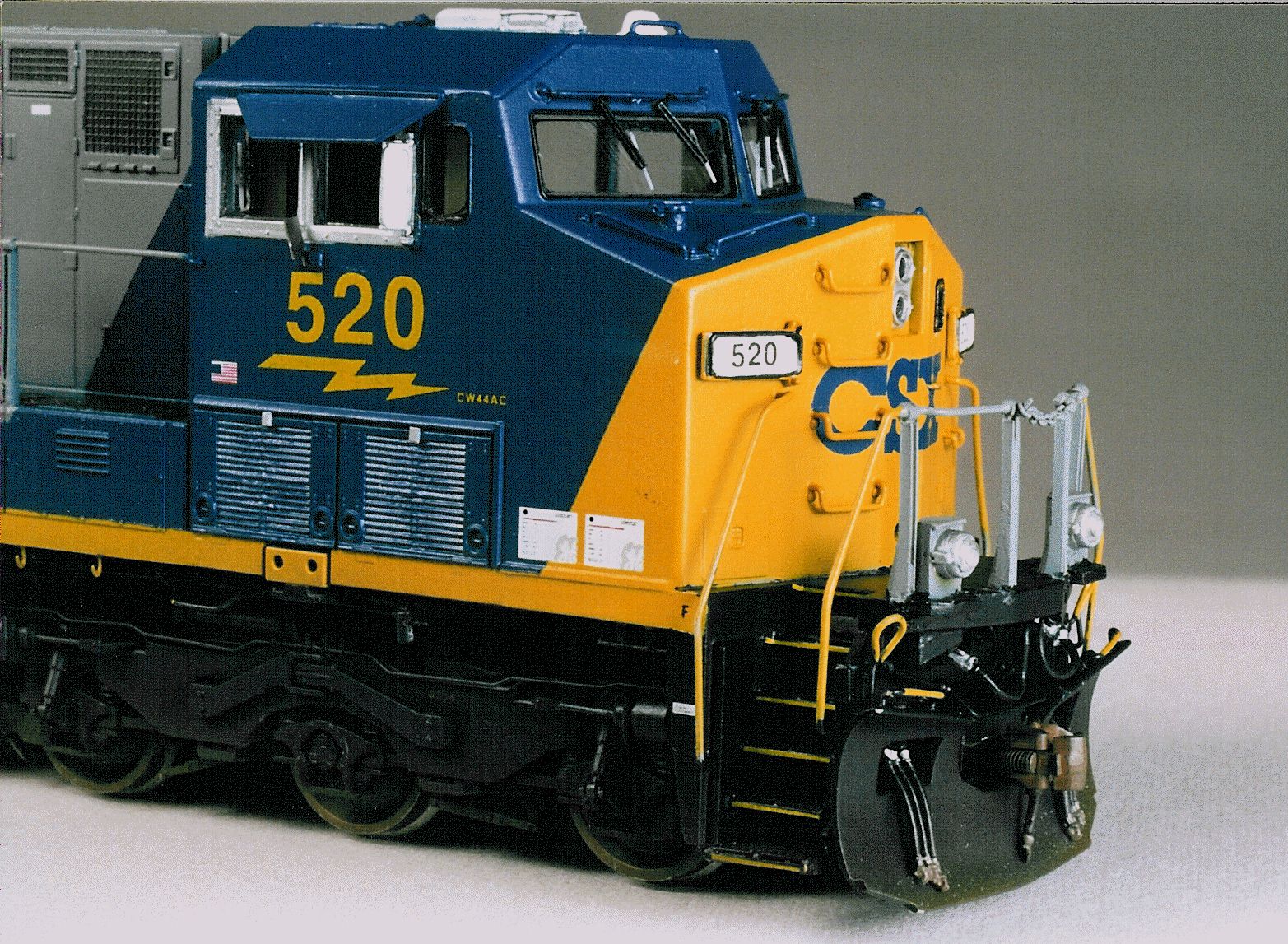

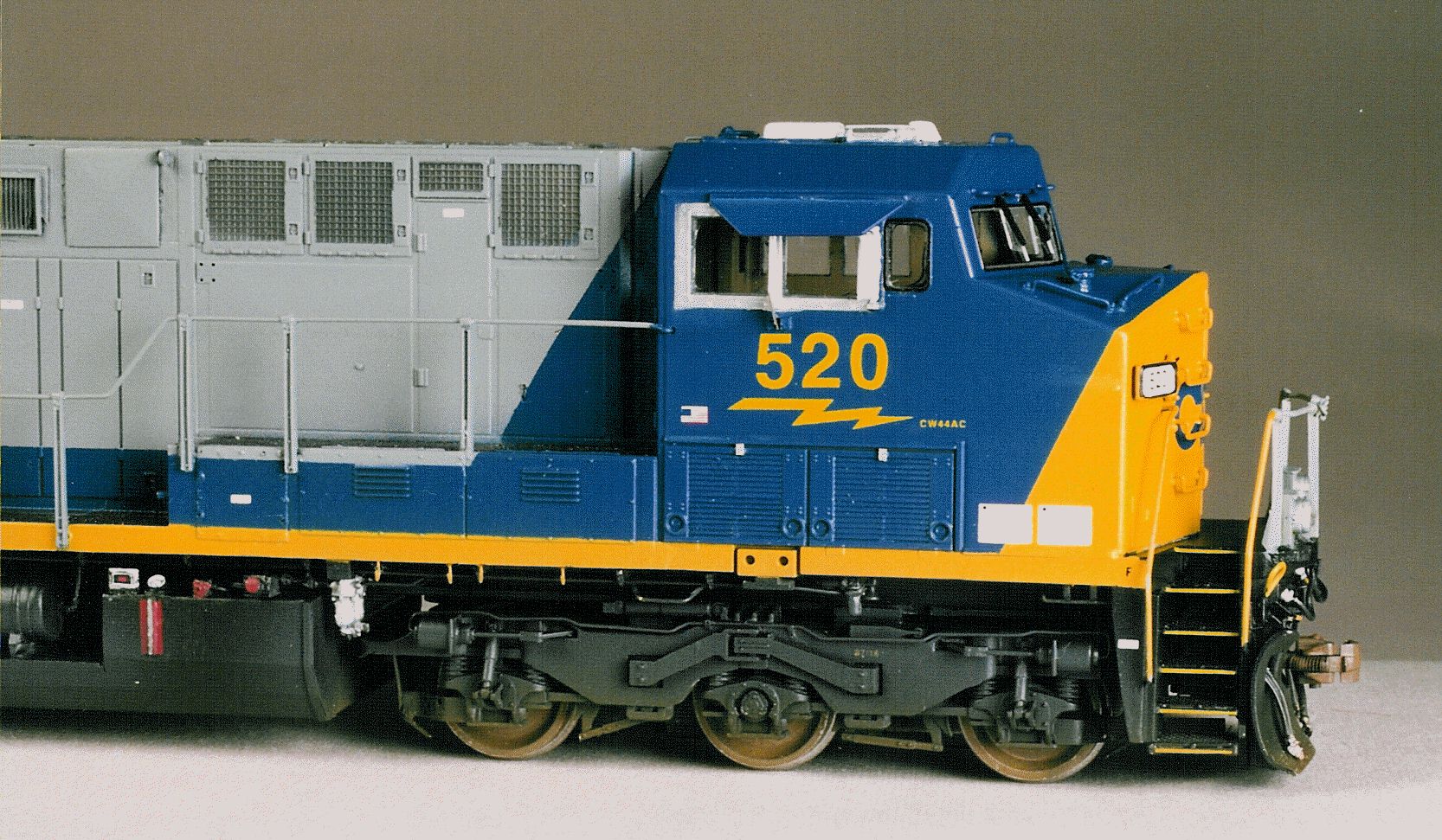

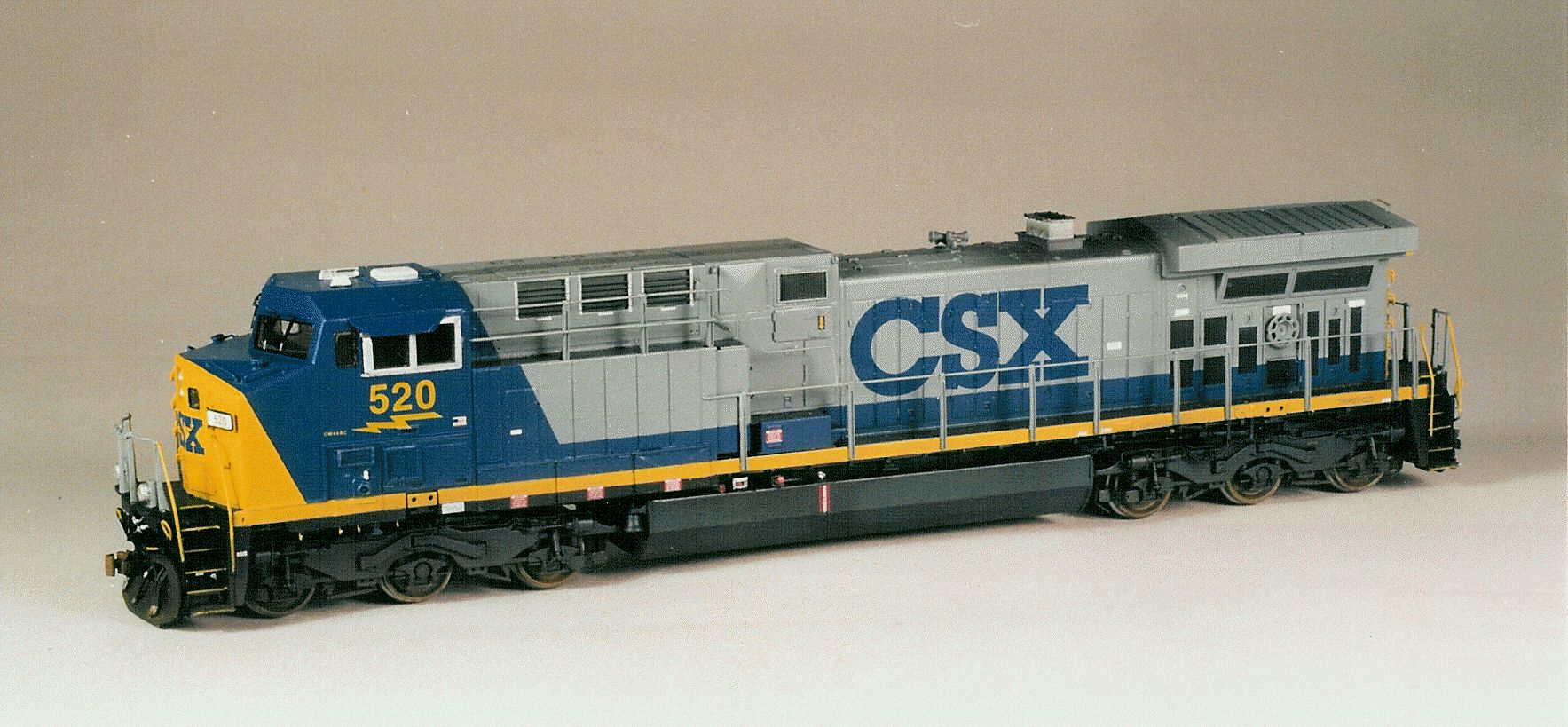

wpe25420.gif (611182 bytes) CSX 500 Class AC4400CW modeled from an Athearn AC4400CW with the new Details West GE Steerable Truck Sideframe #TR-307. Below is a list of other detail parts added. Prototype reference can be found from Diesel Era Magazine Jan/Feb 2002 Vol. 13 Number 1.

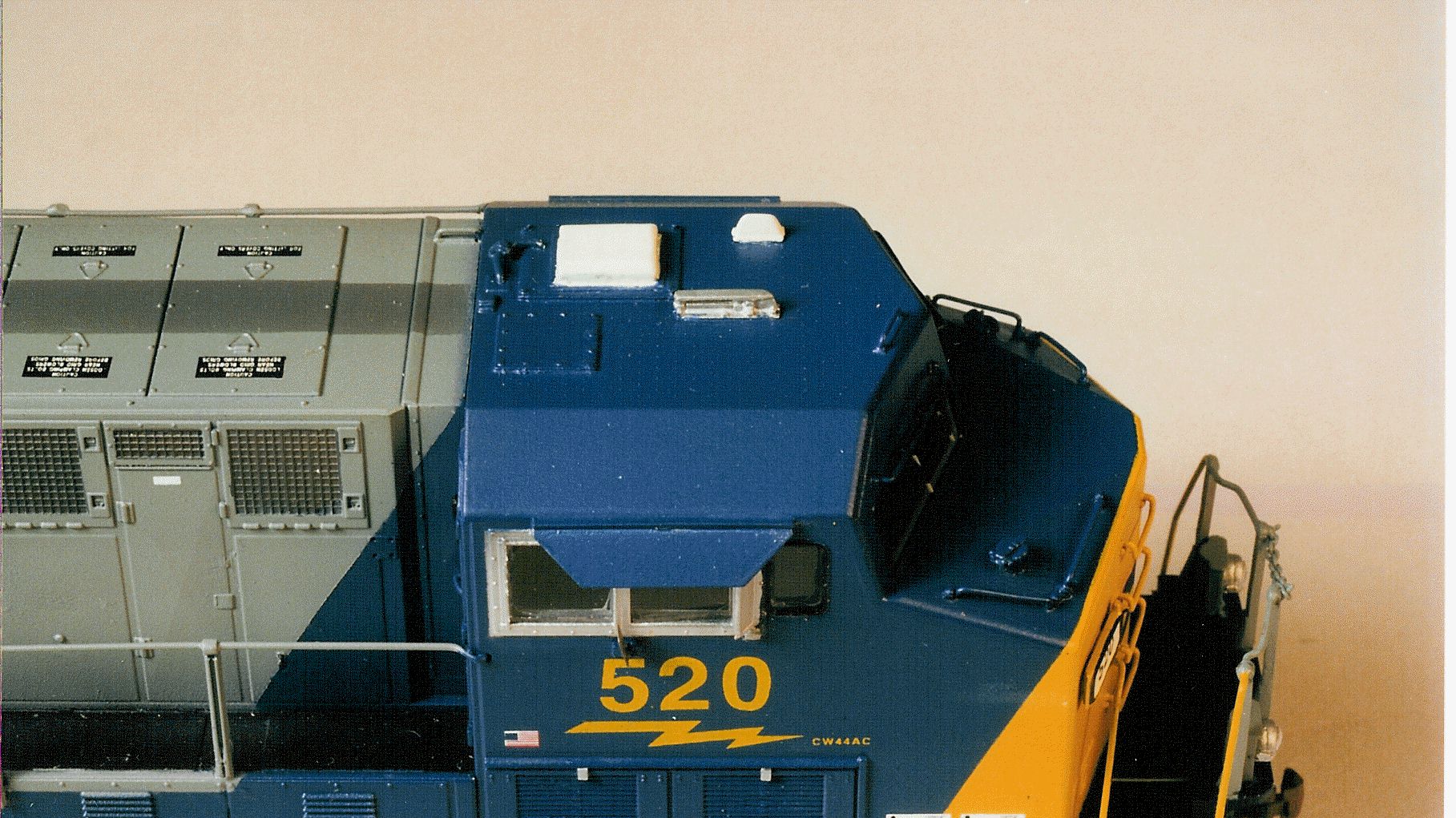

wpe25475.gif (892029 bytes) New Square Angled-Top GPS Dome Coming Soon From Details West








DS-230 C44-9W, AC4400CW detail set for SP, CSX, CP & NS

DS-230 Detail Set contains the Following Parts:

Snow Plow (PL-233) Substituted PL-256 for CSX

"Salem" Air Dryer Filters With Mounts & Pipes (AF-237)

Bell (BE-238)

Rear Recessed Sandfiller Housing & Hatches (SF-241)

Brake-Vent Regulator Valve (BV-245)

Handbrake Chain Pulley Beam (PB-246)

Emergency Fuel Shut-off Switch Box (EF-247)

Traction Motor Cable set (TC-239)

Additional Parts Added:

MU-236 MU Cable With Double Ended Receptacles

DL-243 Ditch Lights With Platforms & Lenses

NB-249 "GE" Number Boards, Hi-Lo Mount

AH-251 Air Horn, K-5

FF-258 "GE" DASH 8, 9 & AC4400CW Fuel Fillers & Gauges

PB-259 Piping and Bracket Details For Right Side of DASH 8, 9 & AC4400CW

MU-266 MU Hose, 3 Cluster Set, All Roads

AH-267 Air Hose, Locomotive Trainline With Bracket

RW-270 GE DASH 9-44CW, AC4400CW Rear Radiator Walkway Plates, Access Hatches & Lifting Lugs

RA-274, 275 Radio Antenna, Small Sinclair and Large Sinclair

RA-277 Radio Antenna, "Wide-Cone" Type

*Decals from Microscale, etched steps and windshield wipers from A-line, stanchions from Smokey Valley, paint from Accupaint.

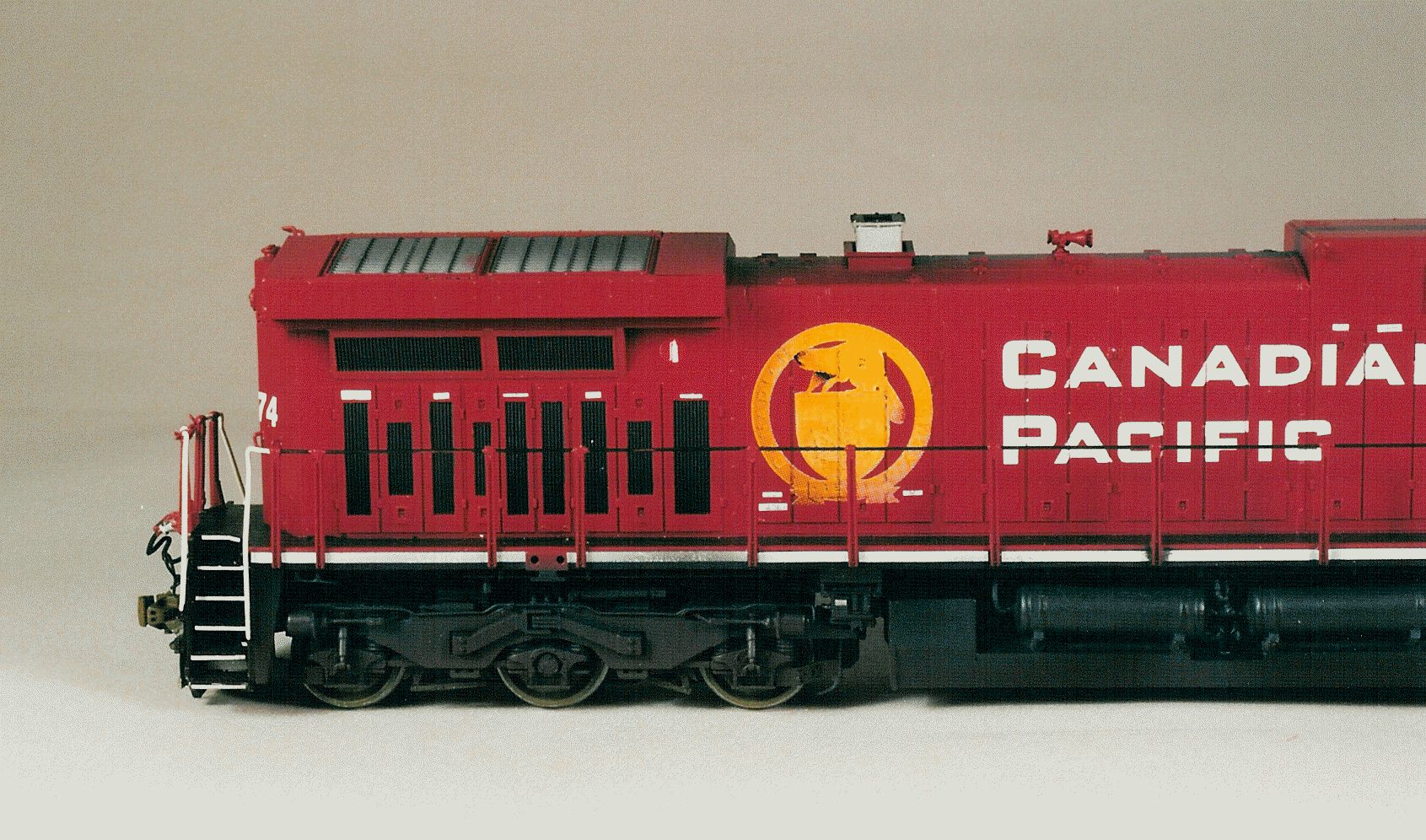

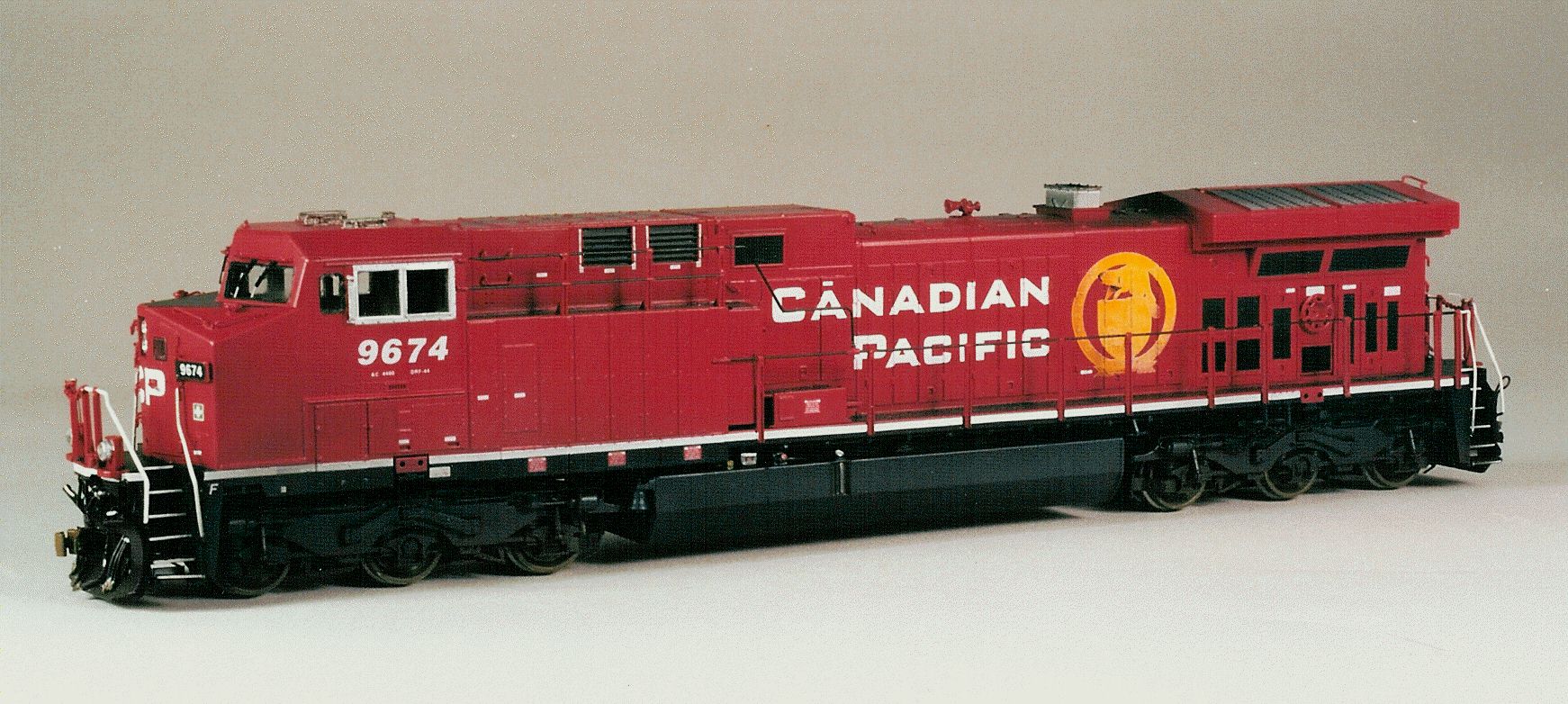

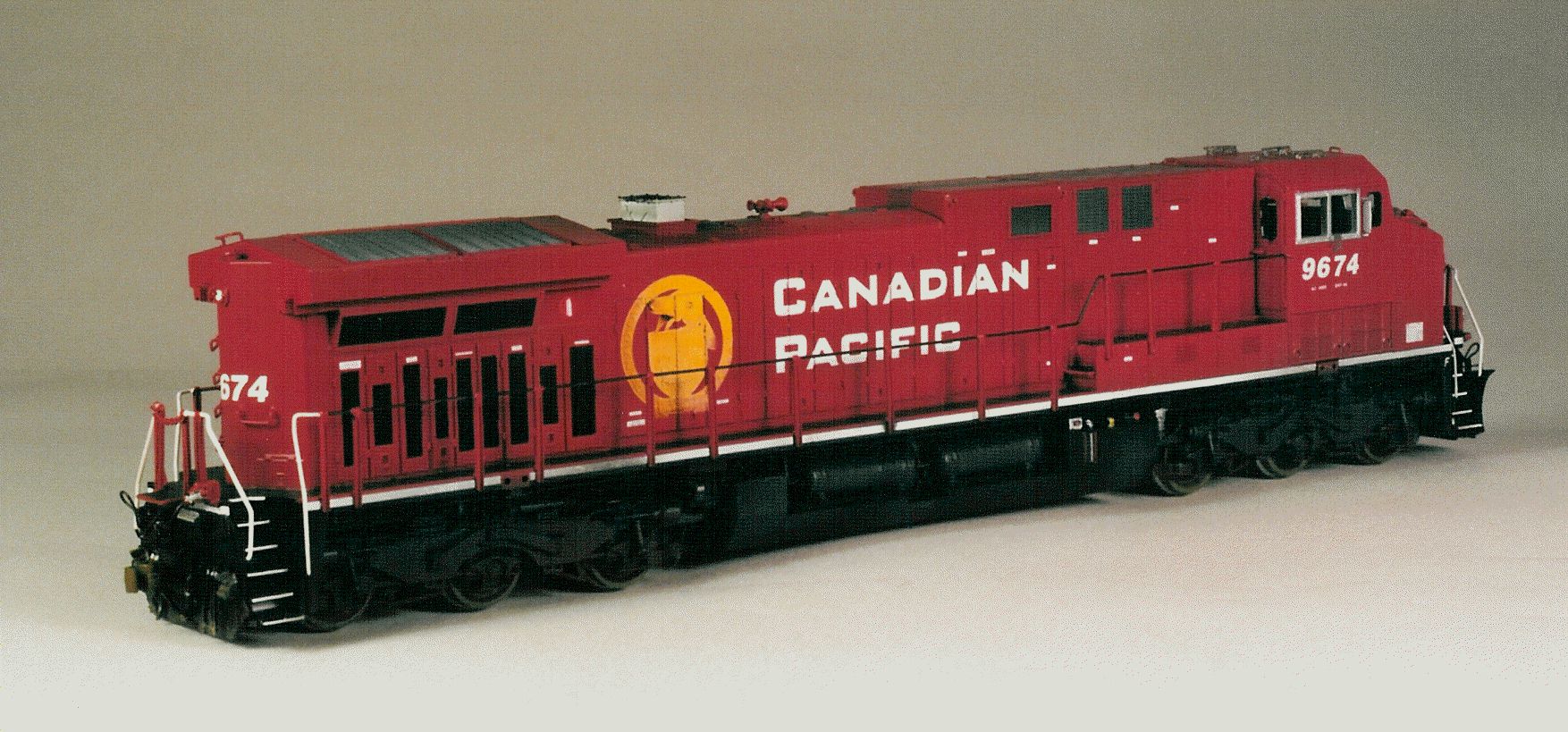

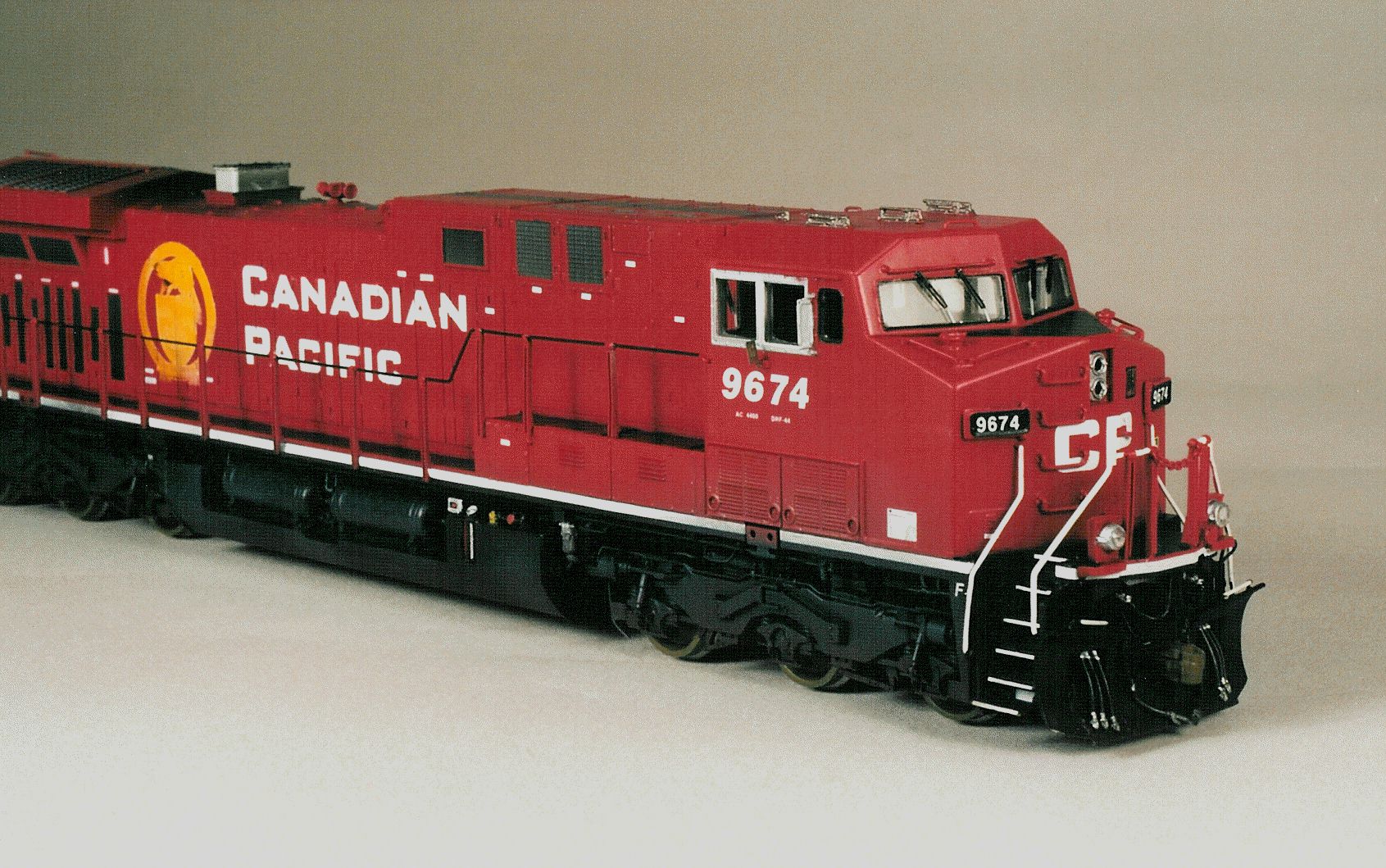

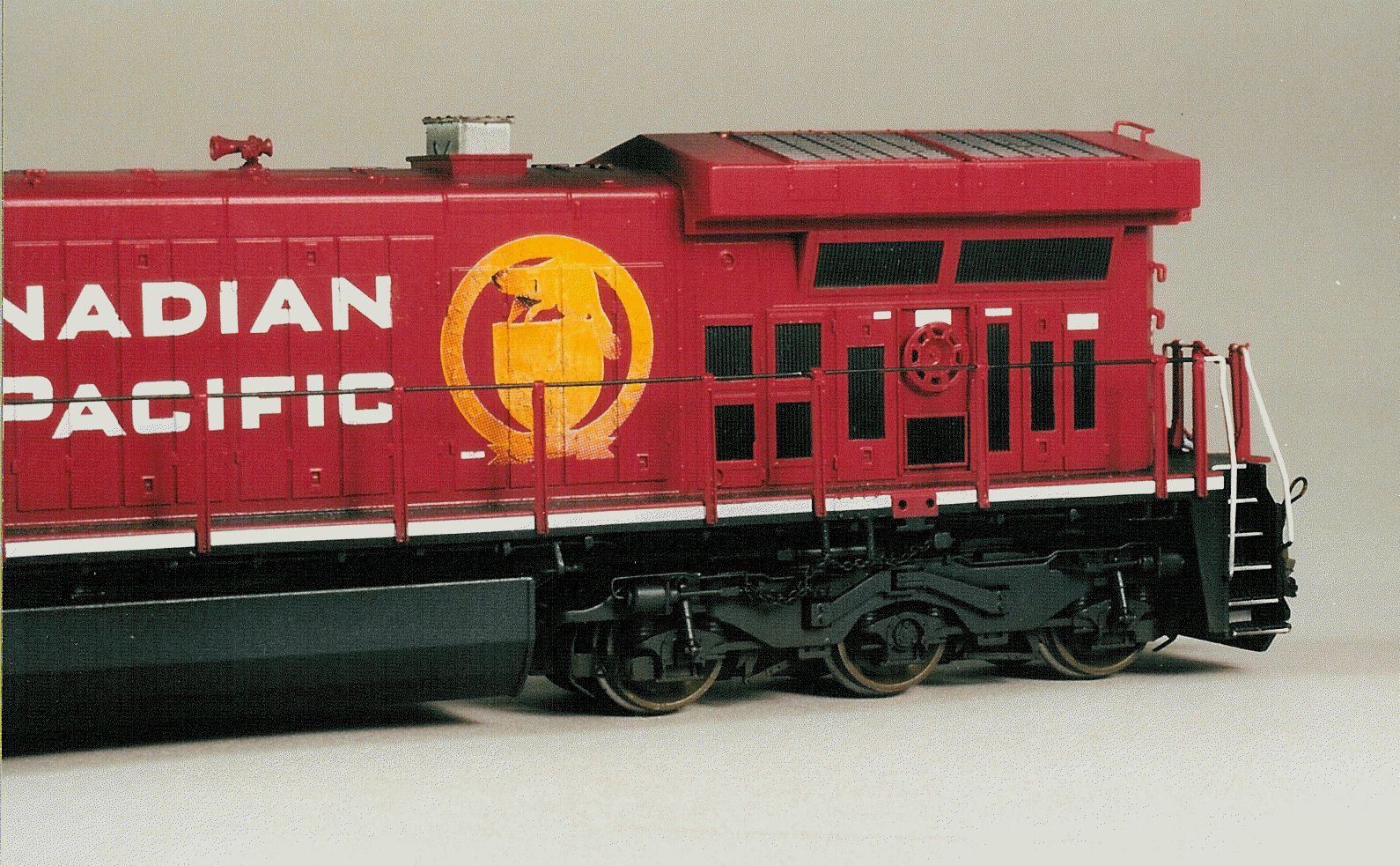

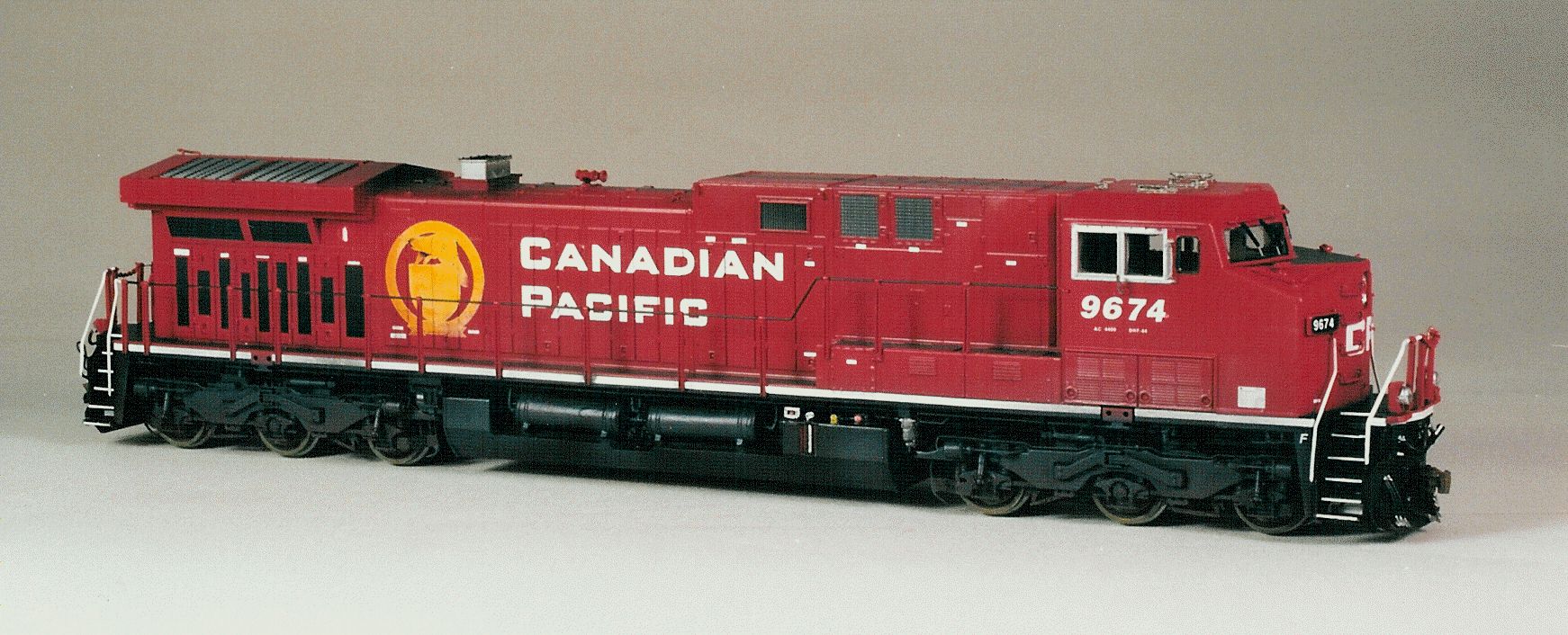

Canadian Pacific 9600 Class AC4400CW modeled from an Athearn AC4400CW with the new Details West GE Steerable Truck Sideframe #TR-307. Below is a list of other detail parts added. Prototype reference can be found from Diesel Era Magazine Mar/April 1999 Vol. 10 Number 2.








DS-230 C44-9W, AC4400CW detail set for SP, CSX, CP & NS

DS-230 Detail Set contains the Following Parts:

Snow Plow (PL-233)

"Salem" Air Dryer Filters With Mounts & Pipes (AF-237) Substituted AF-308 Air Dryer Filter Cylinder/Box Style For Late Era Model GE & EMD Units.

Bell (BE-238)

Rear Recessed Sandfiller Housing & Hatches (SF-241)

Brake-Vent Regulator Valve (BV-245)

Handbrake Chain Pulley Beam (PB-246)

Emergency Fuel Shut-off Switch Box (EF-247)

Traction Motor Cable set (TC-239)

Additional Parts Added:

MU-236 MU Cable With Double Ended Receptacles

DL-243 Ditch Lights With Platforms & Lenses

NB-249 "GE" Number Boards, Hi-Lo Mount

AH-254 Air Horn, K-3

FF-258 "GE" DASH 8,9 & AC4400CW Fuel Fillers & Gauges

PB-259 Piping and Bracket Details For Right Side of DASH 8,9 & AC4400CW

MU-266 MU Hose, 3 Cluster Set, All Roads

AH-267 Air Hose, Locomotive Trainline With Bracket

RW-272 GE  AC4400CW Rear Radiator Walkway Plates, Capacitor Starter Box and Access Hatches & Lifting Lugs

RA-274, 275 Radio Antenna, Small Sinclair and Large Sinclair

*Decals from Microscale, etched steps and windshield wipers from A-line, stanchions from Smokey Valley, paint from Floquil.

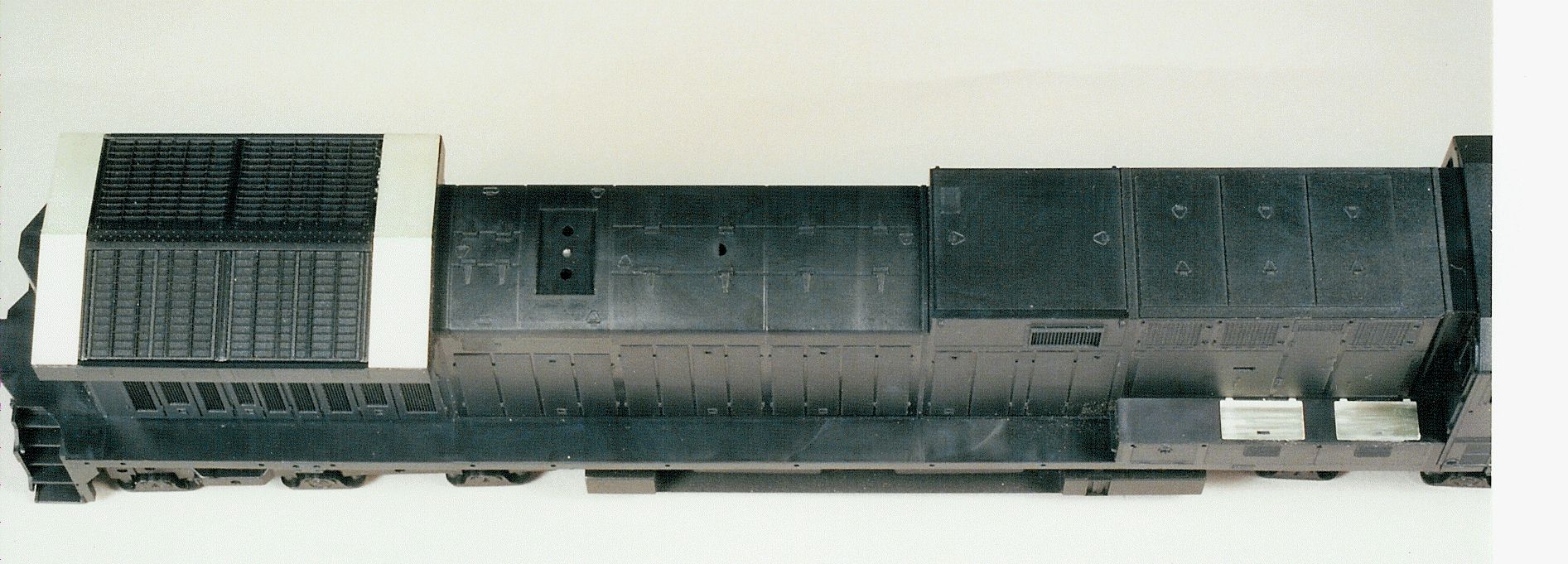

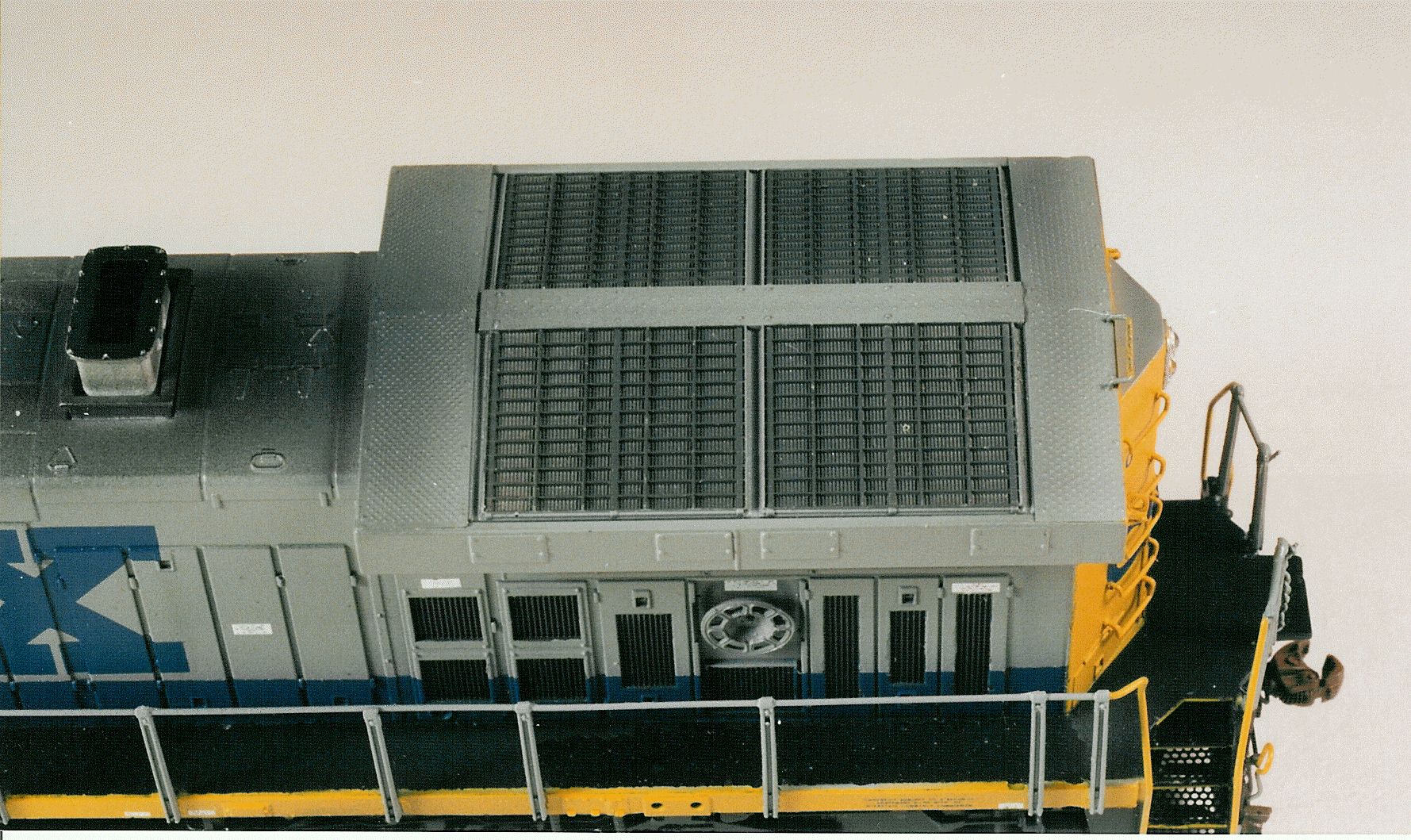

wpe78610.gif (741661 bytes) Rear Radiator Walkway Plates and Access Hatches included in RW-270, DS-272 and DS-273.

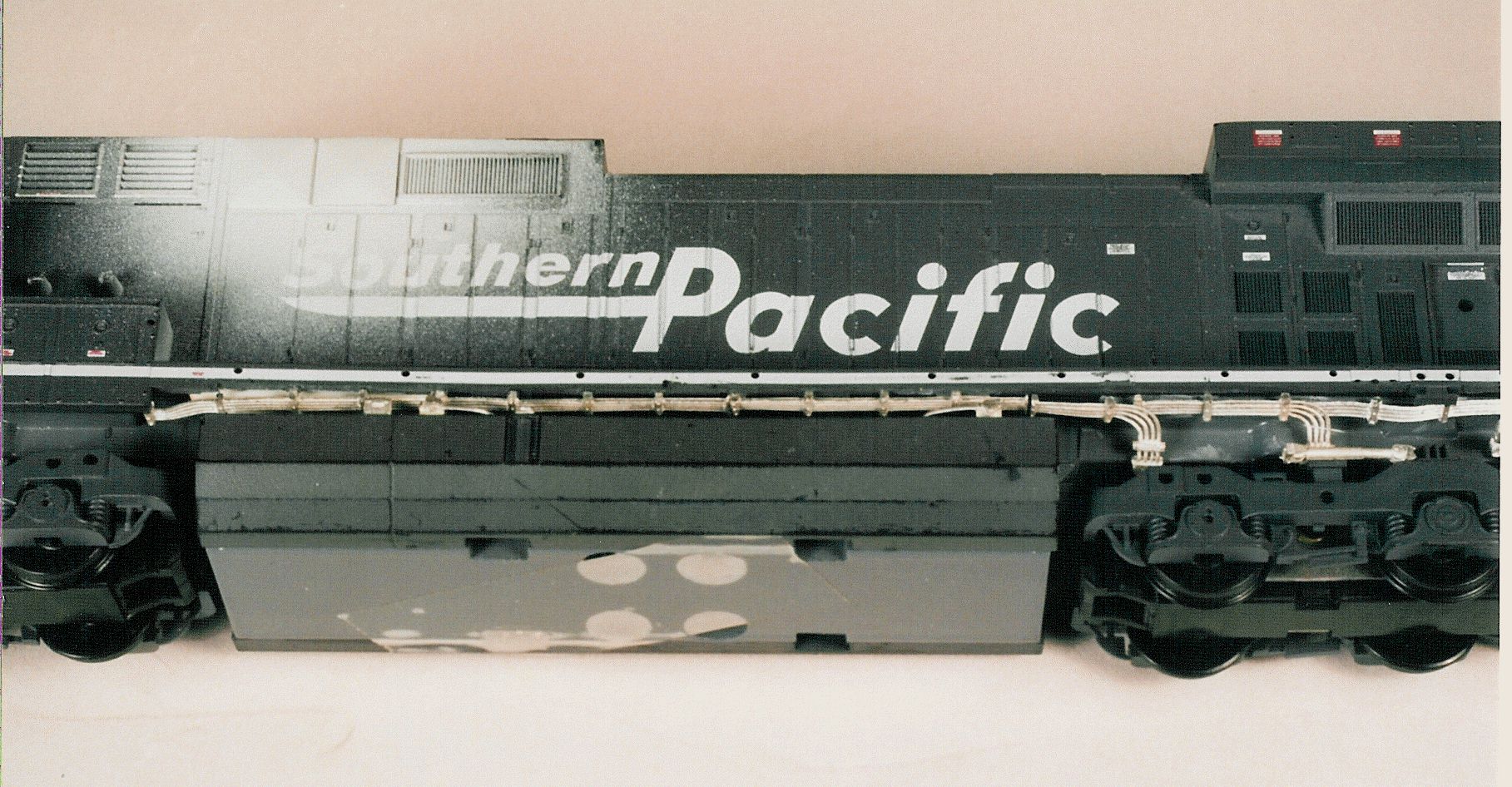

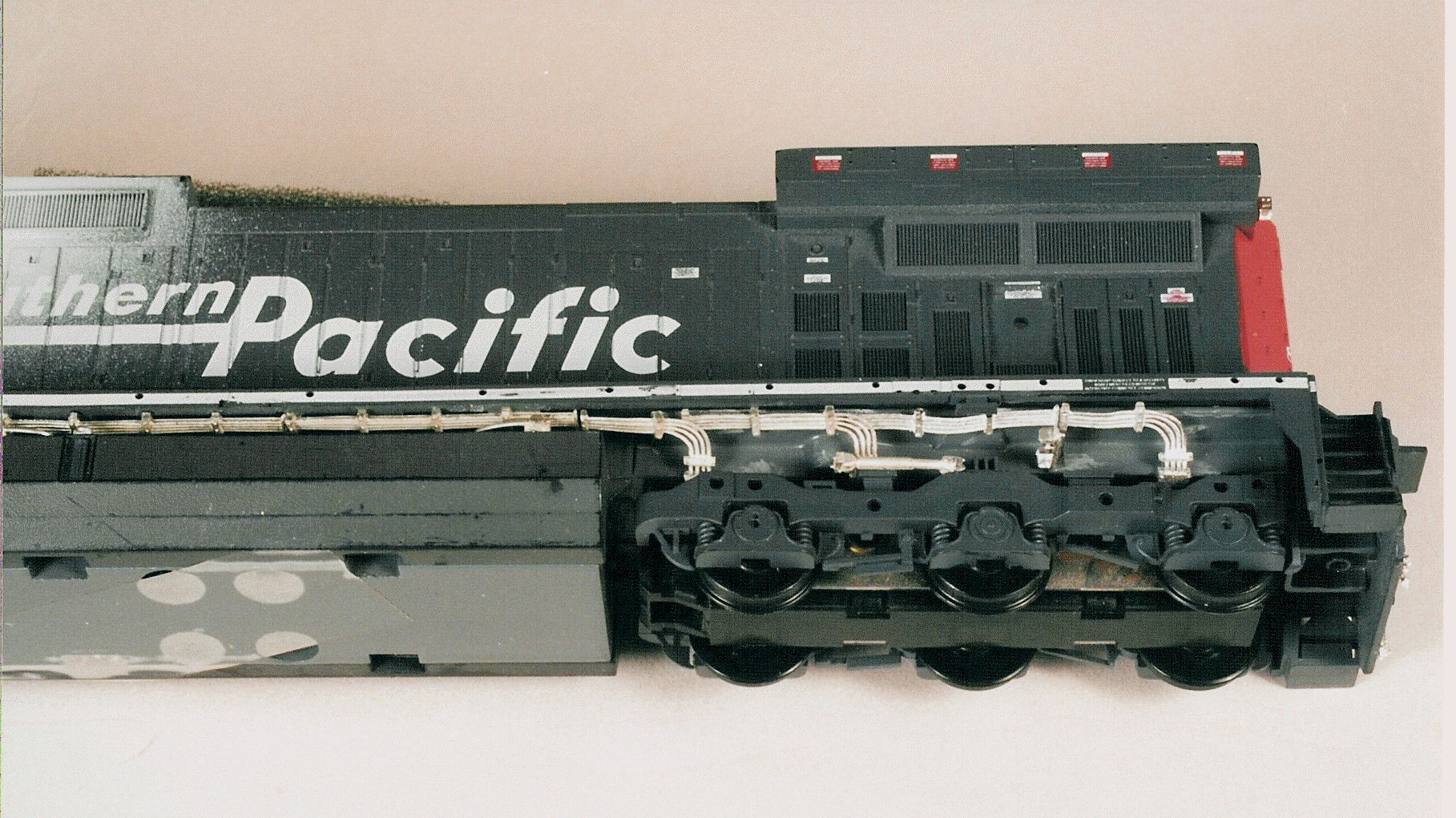

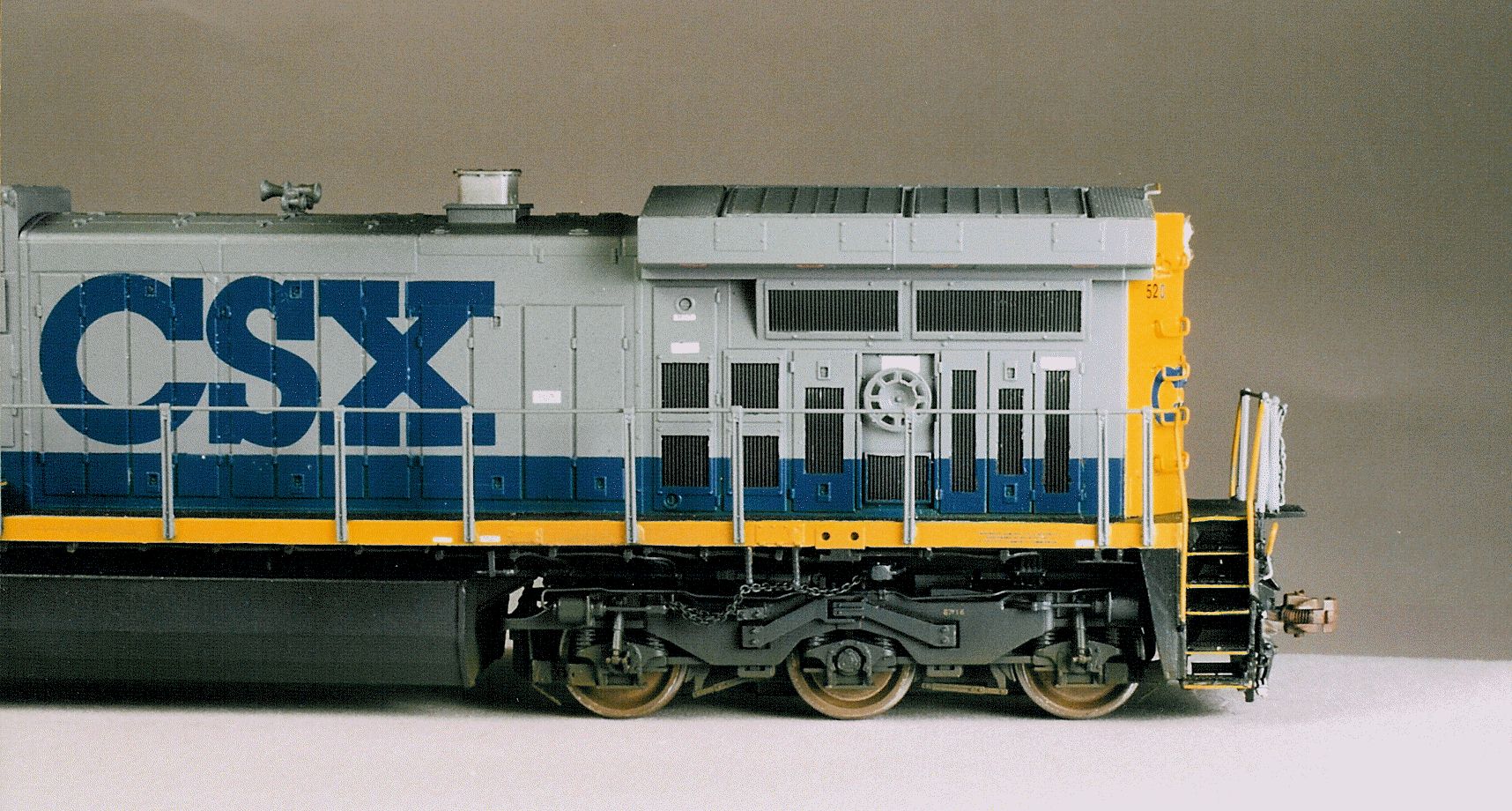

wpe49496.gif (857451 bytes) Detailed Traction Motor Cable Mount, Rear Section. (Included In the DS-230, 231 & 232 Detail Kit or separately TC-239).

wpe58357.gif (876585 bytes) Detailed Traction Motor Cable Mount, Middle Section.

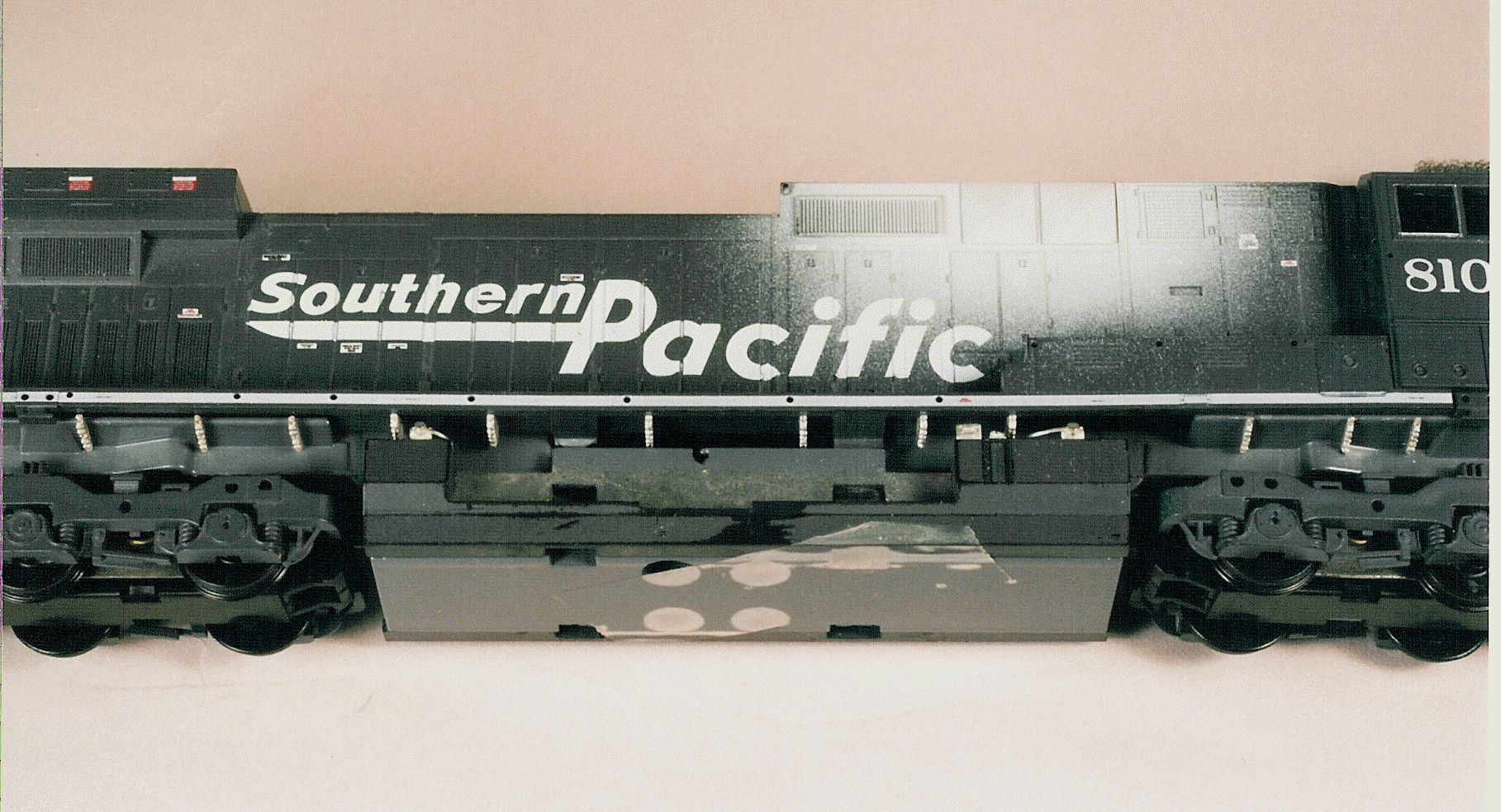

wpe74061.gif (789516 bytes) Detailed Piping Bracket from Set PB-259 before brass wire added.

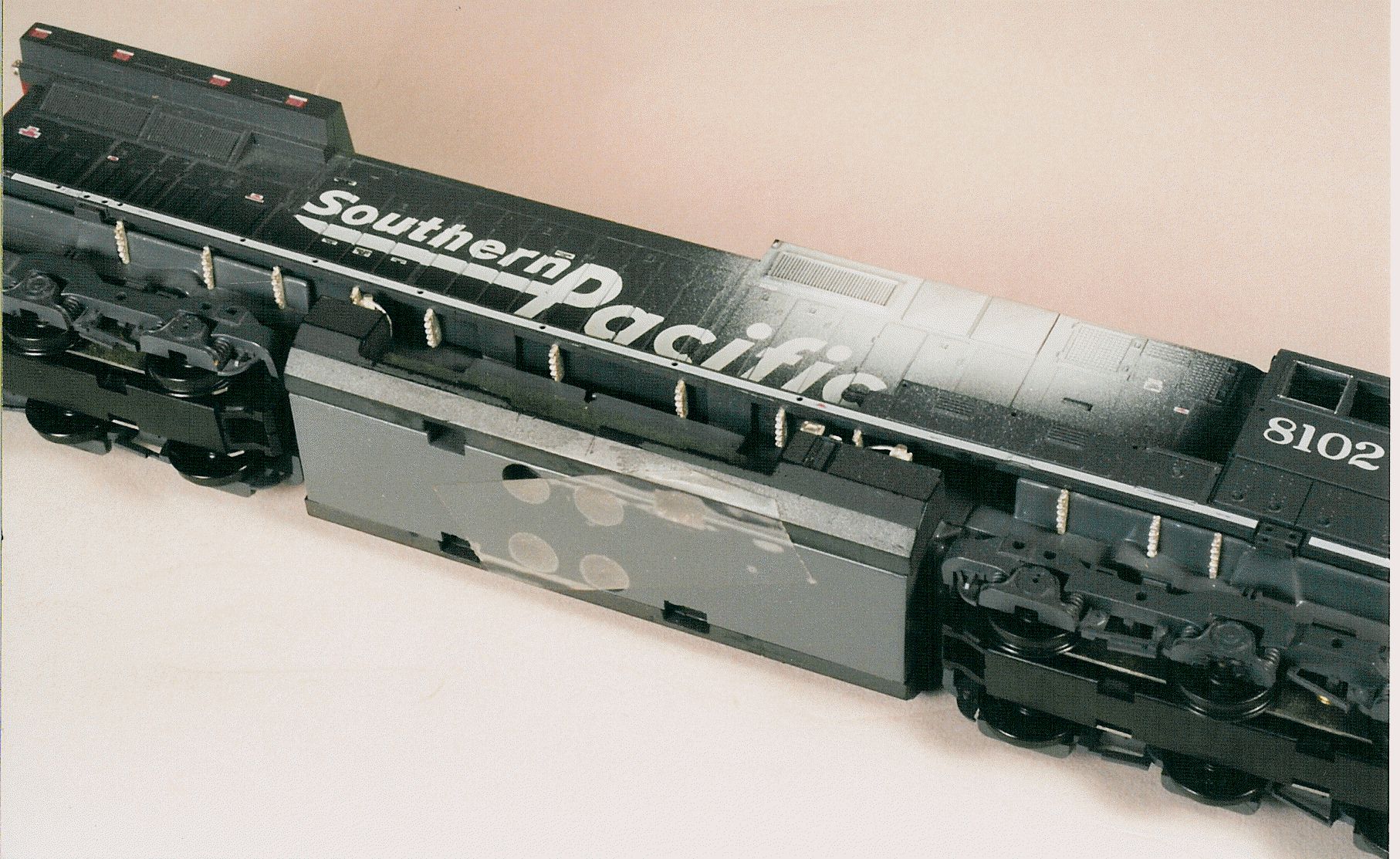

wpe74406.gif (969233 bytes) Detailed Piping Bracket shown for typical attachment on GE DASH-9 and AC4400CW's. Ream the holes on the bracket with a #78 drill bit before mounting.

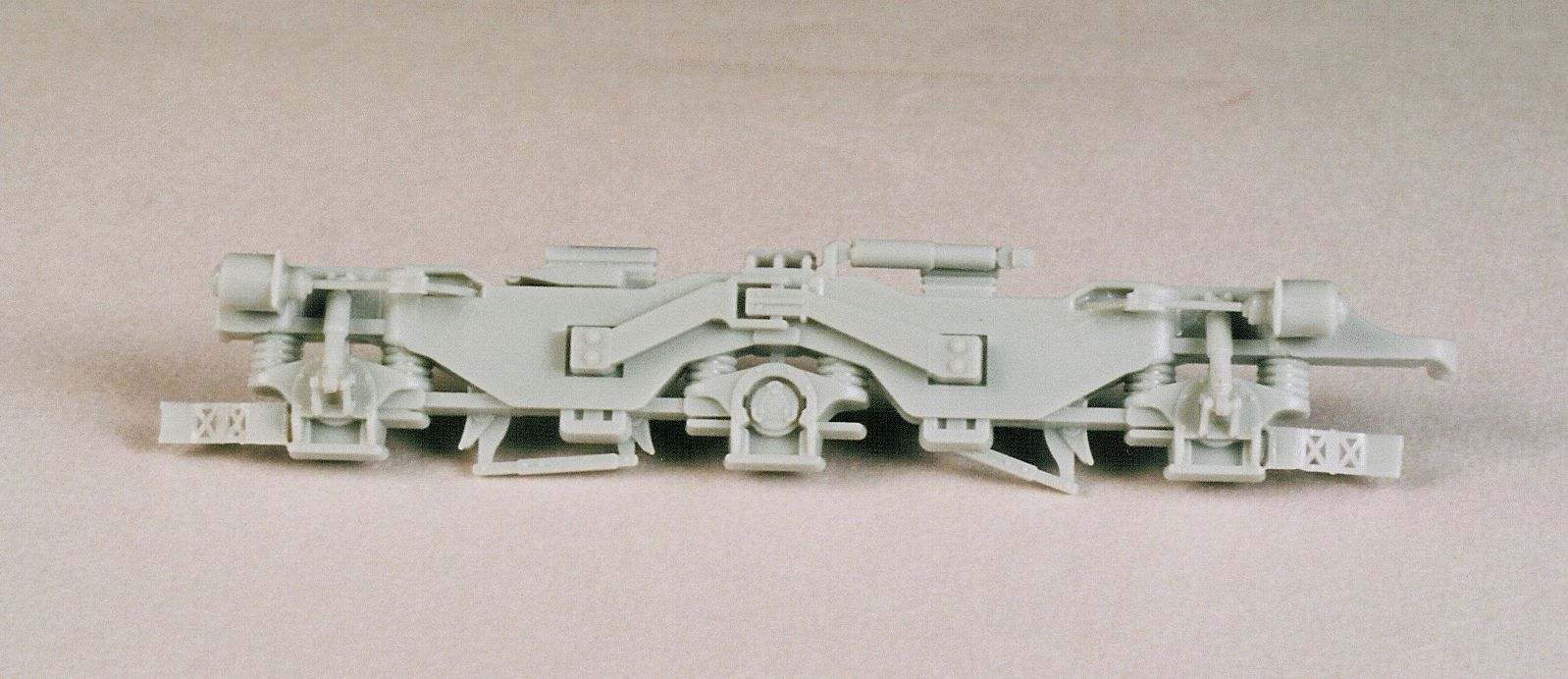

wpe81438.gif (624070 bytes) New TR-307 GE Steerable Truck Sideframe Assembled View.

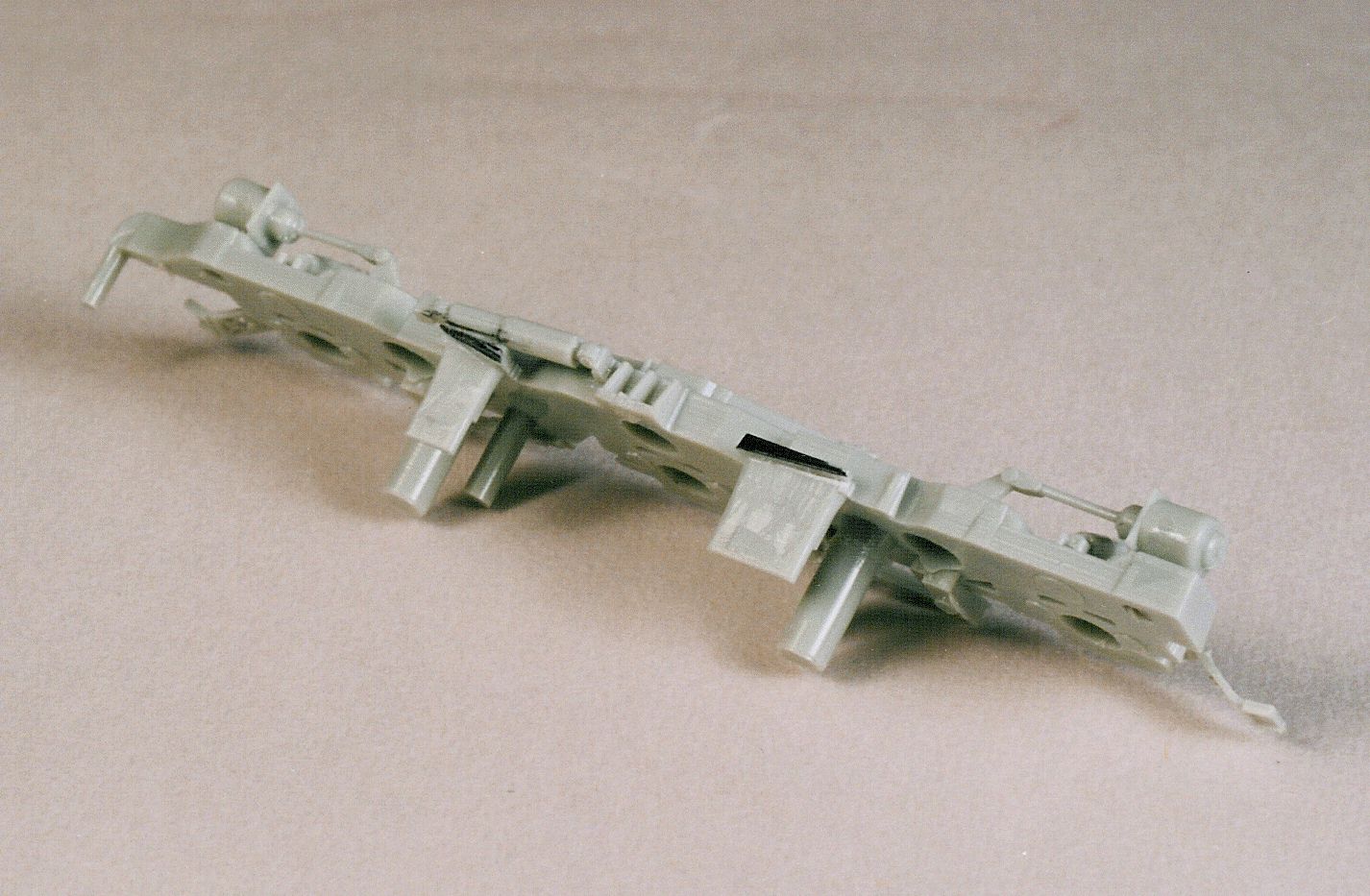

wpe54284.gif (837181 bytes) To enhance the truck swing on the Athearn AC4400CW model, trim the back of the spring detail using a flat edge blade. Shown in photo is after the trimming which would gain an additional 50% swing motion.
